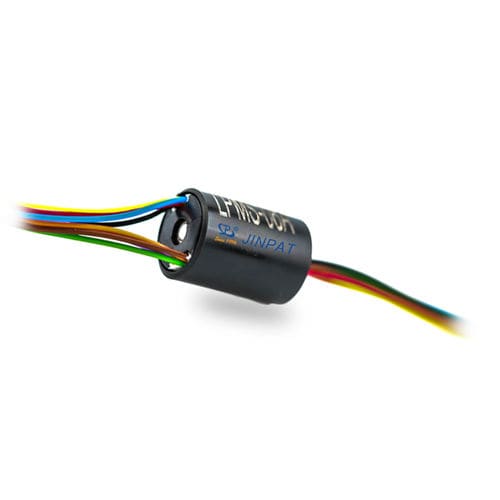

Capsule electrical slip ring LPMS-08A

for sensorsfor roboticsfor cameras

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. Typically, slip ring consists of a stationary graphite or metal contact (brush) which rubs on the outside diameter of a rotating metal ring. As the metal ring turns, the electric current or signal is conducted through the stationary brush to the metal ring making the connection. Specifications Operating Speed - 0-300 rpm Circuits - 8 Voltage - 240 VAC/DC Temperature Range - -20℃ to +60℃ Contact - Precious metal Dynamic resistance fluctuation value - ≤35mΩ Lead Length - Standard 250 mm (9.843inch) Working humidity - 60% RH or higher Housing material Factory plastic Electrical Noise - 1mΩMin
