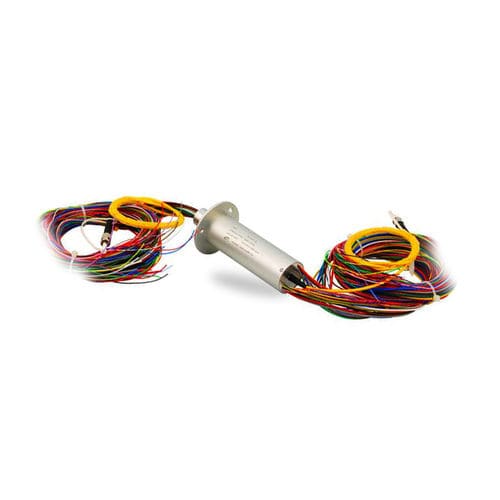

Electro-optical slip ring LPC-0910-3502-FO01

capsulefor roboticsfor radar antennas

JINPAT LPC-0910-3502-FO01 is a high precision slip ring with compact design. With an integrated optical rotary joint, this slip ring model is able to transmit power, signals and optical signals. This slip ring model adopts aluminum alloy as housing material and precious metal as contact material. Taking up special construction and manufacturing technique, LPC-0910-3502-FO01 shows great anti-interference, and guarantee an extremely low data package loss. It is very smooth during rotation, and therefore produce barely any electrical noise. LPC-0910-3502-FO01 takes up advanced technique in the field, and is well-received among the customers. This capsule optical slip ring is fit for electrical devices with demand to transmit optical signals. Circuits - 9circuits* 10A, 35circuits*2A, 1* Fiber Working Voltage - 240 VDC Dielectric Strength - Between circuits≥500V@50Hz Insulation - 100MΩ@100VDC Electrical Noise - ≤15mΩ Working Speed - 0~100 rpm Contact - Precious Metal Housing - Aluminum Alloy Wire Size - AWG17# /28# Lead Wire Length - Rotor:1000±5 mm Stator:1000±5 mm Fiber Wire Length - Rotor:800±5 mm Stator:800±5 mm Wavelength - 1310-1650mm Insertion Loss - ＜2dB Return Loss - ＞40dB Optical Fiber Type - Single mode Connector Type - ST Temperature - -40°C~+85°C Humidity - ≤60%RH IP - IP54
