wastewater pump / for chemicals / with electric motor / diaphragm
GB series Ligao Pump Technology Co., Ltd.

{{requestButtons}}

Characteristics

  • Media:

    for wastewater, for chemicals

  • Operation:

    with electric motor

  • Type:

    diaphragm

  • Domain:

    industrial

  • Other characteristics:

    compact, heavy-duty, suction, mechanical, metering, treatment, PTFE, PVC, composite

  • Flow:

    Min.: 380 l/h (100.3854 us gal/h)

    Max.: 2,160 l/h (570.6116 us gal/h)

  • Pressure:

    3 bar, 4 bar, 5 bar, 6 bar (43.511 psi)

  • Power:

    0.75 kW, 1.1 kW (1.02 hp)

Description

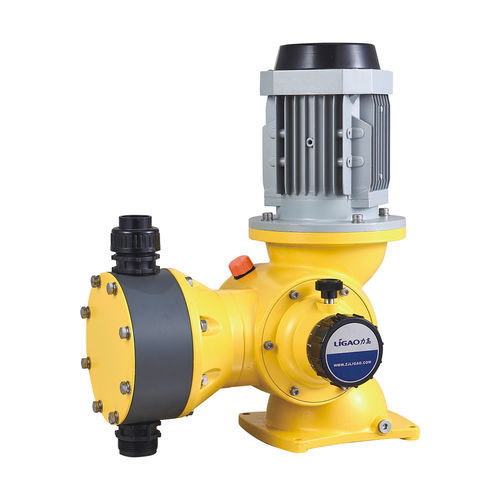

GB High Flow Diaphragm Metering Pump



GB series mechanical diaphragm metering pumps are robust and reliable motor driven diaphragm metering pumps. It is heavy-duty and compact designed with high quality performance.The diaphragm is five-layer composite PTFE diaphragm with reinforced plate at the back.It is a reliable pump benefits long-term cost.The stroke length can be adjusted to alter capacity of this pump. Both stroke length and stroke speed can be adjusted to alter capacity.It is an ideal pump for chemical tranfer in water treatment applications.



Specifications:

l Capacity range: 380 l/h -1800lh under 50Hz

l Pressue range: 3-6 bars

l Max Processing Temperature: from 70℃ (158℉)

l Stroke Adjustment: 0-100%

l Suction lift: 1.5m

l Accuracy: ±2% of set point



Materials:

l Pump head: PVC, PTFE,SS304,SS316

l Diaphragm: Composite PTFE diaphragm

l Check Valve: PVC, PTFE,SS304,SS316 (same as pump head selection)

l Valve ball: Ceramic, SS304,SS316
