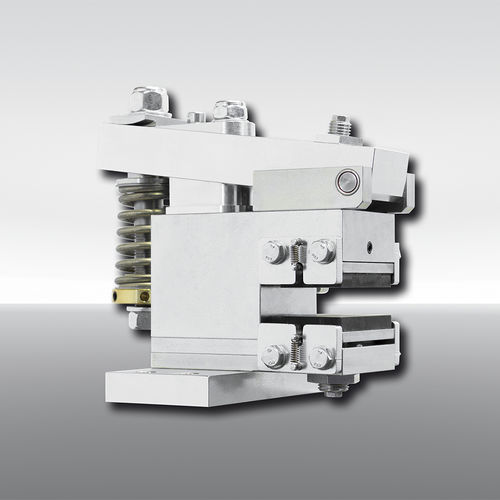

Disc brake / electromagnetic
EV 024 EFM - EH 024 EFM RINGSPANN

Characteristics

  • Type:

    disc

  • Operation:

    electromagnetic

  • Torque:

    Min.: 285 Nm (210.21 ft.lb)

    Max.: 1390 Nm (1025.21 ft.lb)

  • Braking force:

    4000 N, 5000 N

Description

Brake Caliper with electromagnet
Mounting to the machine parallel to the brake disc
Frame size 024
Electromagnetically activated
Spring released
Manual adjustment to accommodate friction block wear
Supply voltage 230 to 415 VAC, adjusted to supply frequency 50 Hz or 60 Hz
Electromagnet mounted in central position
Thickness of brake disc 10 … 16 mm or 18 … 26 mm
