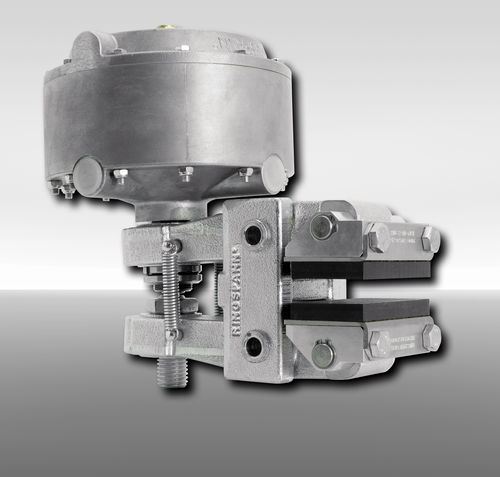

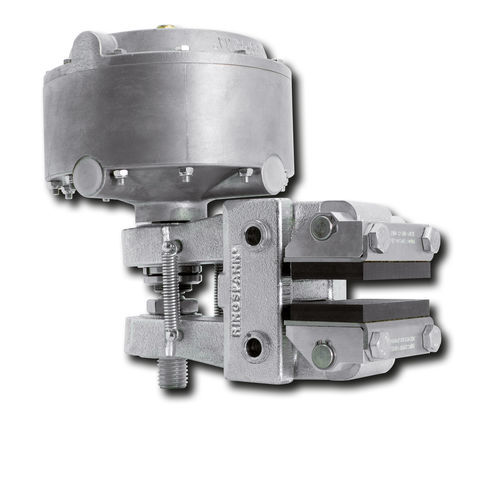

Disc brake caliper DH 035 FPM serieswith pneumatic releasespringspring activated
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- with pneumatic release, spring, spring activated, manual
- Torque
Max.: 5,750 Nm
(4,240.982358 ft.lb)Min.: 430 Nm
(317.151724 ft.lb)
Description
The DH 035 FPM brake caliper from RINGSPANN is spring-activated and pneumatically released.
Features (Code)
Brake Caliper (D)
Mounting to the machine at right angles to the brake disc (H)
Frame size 035 (035)
Spring activated (F)
Pneumatically released (P)
Manual adjustment to accommodate friction block wear (M)
Thrusters 025, 035, 045, 102, 111 or 122 are available (025/035/045/102/111/122)
Thruster mounted right or left available (R/L)
Thickness of brake disc 12,5 mm, 25 mm, 30 mm or 40 mm (12/25/30/40)
Features (Code)
Brake Caliper (D)
Mounting to the machine at right angles to the brake disc (H)
Frame size 035 (035)
Spring activated (F)
Pneumatically released (P)
Manual adjustment to accommodate friction block wear (M)
Thrusters 025, 035, 045, 102, 111 or 122 are available (025/035/045/102/111/122)
Thruster mounted right or left available (R/L)
Thickness of brake disc 12,5 mm, 25 mm, 30 mm or 40 mm (12/25/30/40)
