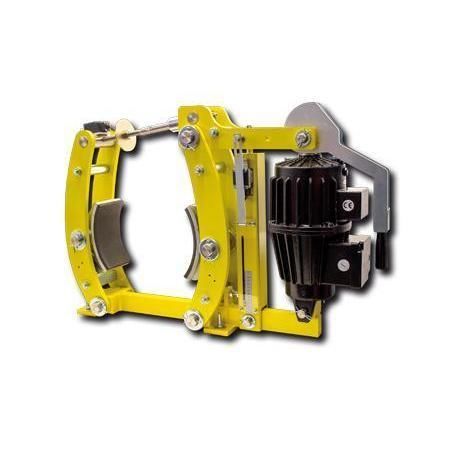

Drum brake caliper DT 500 FEA … ST

spring activatedelectro-hydraulic releasefailsafe

Product overview
Spring-activated, electrohydraulically released drum brake caliper. Drum brake according to DIN 15 435. Frame size: 500. Material: Steel. Model family: DT 500 FEA … ST.

Documents available

• Datasheet DT 500 FEA … ST (PDF)
• Flyer Drum Brake DT (PDF)
• 3D CAD models (STEP / ZIP)
• Installation instruction DT XXX FEM-FEA ST-NC (PDF)
• Industrial brakes catalogue (PDF)

Features

• Brake Caliper — Code: D
• Drum Brake — Code: T
• Frame size 500 — Code: 500
• Spring activated — Code: F
• Electrohydraulically released — Code: E
• Automatic adjustment for friction block wear — Code: A
• Selectable thrustors/venting units: 453, 455, 456
• Material: Steel (ST)

Technical specifications

• Product type: Spring-activated, electrohydraulically released drum brake caliper (DT 500 FEA … ST).
• Standard: Drum Brake according to DIN 15 435.
• Frame size: 500.
• Operation: Fail-safe spring activation with electrohydraulic release.
• Automatic adjustment to compensate friction block wear.
• Selectable thrustors/venting units: 453, 455, 456.
• Material/finish: Steel (ST variant).
• Available documents: datasheet, product flyer, 3D CAD models and installation instructions.
