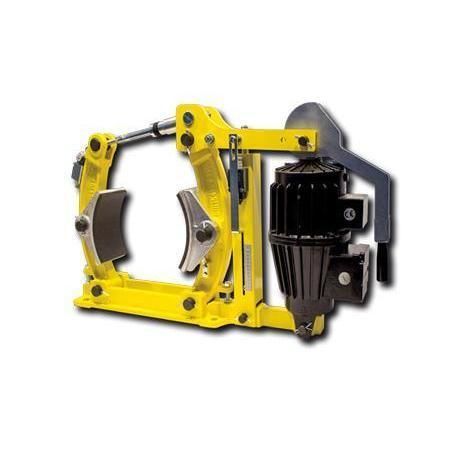

Drum brake caliper DT 400 FEA … NC
spring activatedelectro-hydraulic releaseapplications

Drum brake caliper - DT 400 FEA … NC - RINGSPANN - spring activated / electro-hydraulic release / applications
Drum brake caliper - DT 400 FEA … NC - RINGSPANN - spring activated / electro-hydraulic release / applications
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Type
drum
Operation
spring activated, electro-hydraulic release
Other characteristics
applications
Torque

525 Nm, 1,040 Nm, 1,300 Nm, 2,075 Nm
(387.220128 ft.lb, 767.064635 ft.lb, 958.830794 ft.lb, 1,530.44146 ft.lb)

Braking force

3,300 N, 6,500 N, 8,100 N, 13,000 N

Power

180 W, 240 W, 280 W, 370 W

Description

Overview
Spring-actuated drum brake caliper, electrohydraulically released (FEA). Conforms to DIN 15 435 for drum brakes. Frame size 400. Material: cast (designation NC). Designed for industrial applications requiring spring application with remote electrohydraulic release.

Available documentation / files
  • Datasheet DT 400 FEA NC (PDF)
  • Flyer Drum Brake DT (PDF)
  • 3D CAD models (STEP / ZIP)
  • Installation instruction DT XXX FEM-FEA ST-NC (PDF)
  • Catalogue Industrial Brakes (PDF)


Features (table)
Brake caliper — Code: D
Drum brake — Code: T
Frame size — 400
Spring activated — F
Electrohydraulically released — E
Automatic adjustment to compensate friction block wear — A
Selectable thrustors — 452, 453, 454, 455
Material: Cast — NC

Technical characteristics / specifications
  • Product type: Brake caliper (drum brake)
  • Operating principle: Spring-activated, electrohydraulically released
  • Standard: DIN 15 435 (drum brake)
  • Frame size: 400
  • Automatic adjustment to compensate friction block wear
  • Selectable thrustors: 452, 453, 454, 455
  • Material: Cast (designation NC)
  • Available files: product datasheet, product flyer, 3D CAD models (STEP), installation instruction, catalogue
