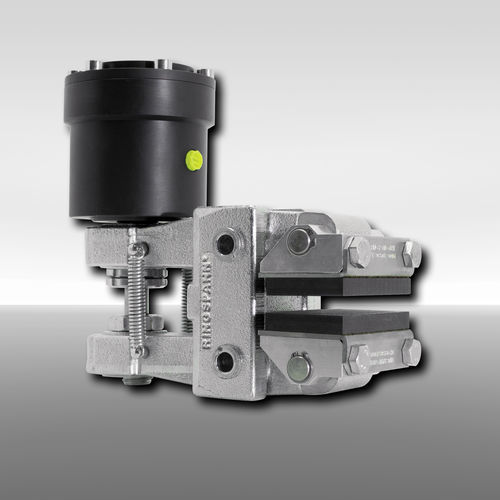

Disc brake caliper DH 035 FHM series
springspring activatedhydraulic release

Disc brake caliper - DH 035 FHM series - RINGSPANN - spring / spring activated / hydraulic release
Disc brake caliper - DH 035 FHM series - RINGSPANN - spring / spring activated / hydraulic release
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Type
disc
Operation
spring, spring activated, hydraulic release, manual
Torque

Max.: 4,700 Nm
(3,466.542102 ft.lb)

Min.: 1,500 Nm
(1,106.343224 ft.lb)

Description

spring activated – hydraulically released Features - Code Brake Caliper - D Mounting to the machine at right angles to the brake disc - H Frame size 035 - 035 Spring activated - F Hydraulically released - H Manual adjustment to accommodate friction block wear - M Thruster 270 - 270 Thruster mounted right or left available - R L Thickness of brake disc 12,5 mm or 25 mm - 12 25
