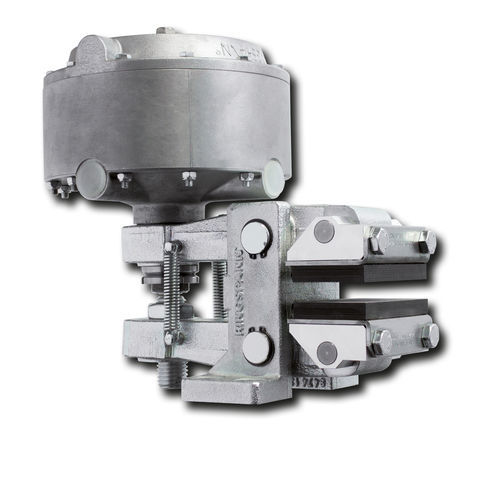

Disc brake caliper DV 035 FPA

caliper discspring activatedwith pneumatic release

Product overview
The DV 035 FPA industrial brake caliper from RINGSPANN is spring-activated and pneumatically released. It features automatic wear adjustment to compensate friction block wear and is designed for mounting perpendicular to the brake disc. Multiple pressure piston sizes and brake disc thickness options are available for industrial braking applications.

Documents (available)

• Datasheet DV 035 FPA (PDF)
• Installation instruction DV/DH 025/030/035 FPM/FPA (PDF)
• Catalogue: Industrial Brakes (PDF)

Features / Table

• Brake caliper — Code: D
• Mounting to the machine perpendicular to the brake disc — Code: H
• Frame size — 035
• Spring activated — Code: F
• Pneumatically released — Code: P
• Automatic wear adjustment — Code: A
• Pressure piston options — 065 / 085 / 095 / 115 / 125
• Thruster mounted right (option) — Code: R
• Supported brake disc thicknesses — 12.5 mm / 25 mm / 30 mm / 40 mm

Available variants (webshop items)

• DV 035 FPA-065 R-12 — Article number: 4457-351684-000000 — Weight: 10.9 kg — Delivery time: 10 Days — Price (net) per piece: 2193.00 EUR
• DV 035 FPA-065 R-25 — Article number: 4457-351686-000000 — Weight: 10.9 kg — Delivery time: 10 Days — Price (net) per piece: 2193.00 EUR
• DV 035 FPA-065 R-30 — Article number: 4457-351688-000000 — Weight: 10.9 kg — Delivery time: 10 Days — Price (net) per piece: 2193.00 EUR
• DV 035 FPA-065 R-40 — Article number: 4457-351690-000000 — Weight: 10.9 kg — Delivery time: 10 Days — Price (net) per piece: 2193.00 EUR
• DV 035 FPA-085 R-12 — Article number: 4457-351692-000000 — Weight: 13.3 kg — Delivery time: 10 Days — Price (net) per piece: 2193.00 EUR
• DV 035 FPA-085 R-25 — Article number: 4457-351694-000000 — Weight: 13.3 kg — Delivery time: 10 Days — Price (net) per piece: 2193.00 EUR
• DV 035 FPA-085 R-30 — Article number: 4457-351696-000000 — Weight: 13.3 kg — Delivery time: 10 Days — Price (net) per piece: 2193.00 EUR
• DV 035 FPA-085 R-40 — Article number: 4457-351698-000000 — Weight: 13.3 kg — Delivery time: 10 Days — Price (net) per piece: 2193.00 EUR
• DV 035 FPA-095 R-12 — Article number: 4457-354600-000000 — Weight: 13.3 kg — Delivery time: 10 Days — Price (net) per piece: 2282.00 EUR
• DV 035 FPA-095 R-25 — Article number: 4457-354602-000000 — Weight: 13.3 kg — Delivery time: 10 Days — Price (net) per piece: 2282.00 EUR
• DV 035 FPA-095 R-30 — Article number: 4457-354604-000000 — Weight: 13.3 kg — Delivery time: 10 Days — Price (net) per piece: 2282.00 EUR
• DV 035 FPA-095 R-40 — Article number: 4457-354606-000000 — Weight: 13.3 kg — Delivery time: 10 Days — Price (net) per piece: 2282.00 EUR
• DV 035 FPA-115 R-12 — Article number: 4457-351627-000000 — Weight: 14.9 kg — Delivery time: 10 Days — Price (net) per piece: 2373.00 EUR
• DV 035 FPA-115 R-25 — Article number: 4457-351629-000000 — Weight: 14.9 kg — Delivery time: 10 Days — Price (net) per piece: 2373.00 EUR
• DV 035 FPA-115 R-30 — Article number: 4457-351631-000000 — Weight: 14.9 kg — Delivery time: 10 Days — Price (net) per piece: 2373.00 EUR
• DV 035 FPA-115 R-40 — Article number: 4457-351633-000000 — Weight: 14.9 kg — Delivery time: 10 Days — Price (net) per piece: 2373.00 EUR
• DV 035 FPA-125 R-12 — Article number: 4457-354608-000000 — Weight: 14.9 kg — Delivery time: 10 Days — Price (net) per piece: 2373.00 EUR
• DV 035 FPA-125 R-25 — Article number: 4457-354610-000000 — Weight: 14.9 kg — Delivery time: 10 Days — Price (net) per piece: 2373.00 EUR
• DV 035 FPA-125 R-30 — Article number: 4457-354612-000000 — Weight: 14.9 kg — Delivery time: 10 Days — Price (net) per piece: 2373.00 EUR
• DV 035 FPA-125 R-40 — Article number: 4457-354614-000000 — Weight: 14.9 kg — Delivery time: 10 Days — Price (net) per piece: 2373.00 EUR

Technical specifications

• Product type: Industrial brake caliper (spring-activated, pneumatically released)
• Model: DV 035 FPA
• Frame size: 035
• Activation: Spring activated (F)
• Release: Pneumatic (P)
• Automatic wear adjustment: Yes (A)
• Pressure piston options: 065 / 085 / 095 / 115 / 125
• Thruster mounting option: right (R)
• Supported brake disc thicknesses: 12.5 mm, 25 mm, 30 mm, 40 mm
• Variants: Multiple configurations with article numbers, weights and net prices per piece
