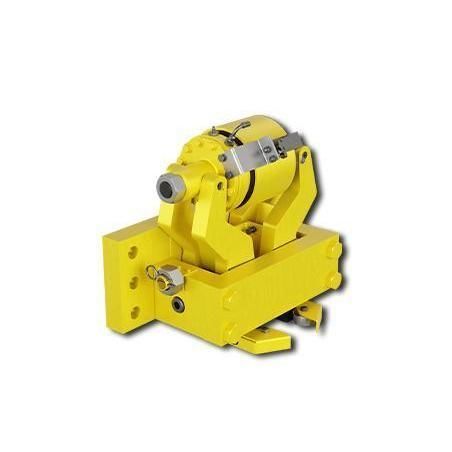

Friction brake DR 085 FHK

spring activatedhydraulic releaseemergency

Product overview
Spring-activated, hydraulically released rail-clamp storm brake designed for holding and emergency braking applications. Available in frame size 085 with selectable maximum holding forces from 50 kN to 400 kN and compatible with multiple rail profiles.

Documents available

• Datasheet DR 085 FHK (PDF)
• Product flyer (PDF)
• 3D CAD models (ZIP)
• Installation instruction DR 085/088 FHM (PDF)
• Catalogue: Industrial Brakes (PDF)

Technical features (table)
Features — Code
Clamp — D
Rail — R
Frame size 085 — 085
Spring activated — F
Hydraulically released — H
No adjustment to counter friction block wear — K
Max. braking forces for holding of 50 kN, 100 kN, 200 kN, 300 kN or 400 kN — 050 to 400
Thruster mounted in central position — M
Clamping jaws available for rail profiles A55, A65, A75, A100, A120 or 6,00E+02 — A55 / A65 / A75 / A100 / A120 / 6,00E+02

Characteristics / technical specifications

• Type: spring-activated, hydraulically released rail-clamp storm brake
• Model / frame size: 085
• Clamp code: D
• Rail code: R
• Activation: Spring activated (F)
• Release: Hydraulically released (H)
• Wear compensation: No adjustment to counter friction block wear (K)
• Thruster position: Central (M)
• Max. holding forces: 50 kN, 100 kN, 200 kN, 300 kN, 400 kN
• Available clamping jaws (rail profiles): A55, A65, A75, A100, A120, 6,00E+02
• Available resources: datasheet, product flyer, installation instructions, 3D CAD models
