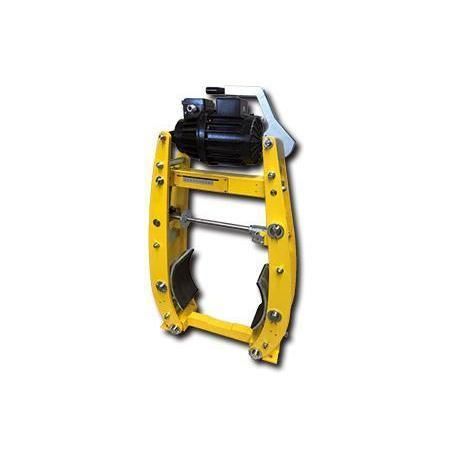

Drum brake caliper DT 250 FEA … H - STspring activatedelectro-hydraulic release
Add to favorites
Compare this product
Characteristics
- Type
- drum
- Operation
- spring activated, electro-hydraulic release
- Torque
235 Nm, 320 Nm
(173.327105 ft.lb, 236.019888 ft.lb)- Braking force
2,350 N, 3,200 N
- Power
130 W, 180 W
Description
Product overview
Spring-activated, electrohydraulically released drum brake according to DIN 15 435. Frame size 250. Thrustor orientation: horizontally mounted (H). Material: Steel (ST). Automatic adjustment compensates friction block wear. Selectable thrustors: 451 or 452.
Available documents
Features (code)
Features | Code
Brake Caliper | D
Drum Brake | T
Frame size 250 | 250
Spring activated | F
Electrohydraulically released | E
Automatic adjustment to compensate friction block wear | A
Selectable thrustors 451 / 452 | 451 / 452
Thrustor mounted horizontally | H
Material: Steel | ST
Technical specifications
Spring-activated, electrohydraulically released drum brake according to DIN 15 435. Frame size 250. Thrustor orientation: horizontally mounted (H). Material: Steel (ST). Automatic adjustment compensates friction block wear. Selectable thrustors: 451 or 452.
Available documents
- Datasheet DT 250 FEA … H - ST (PDF)
- Drum Brake DT flyer (PDF)
- Installation Instruction DT XXX FEA-XXX H-ST (PDF)
- Industrial brakes catalogue (PDF)
Features (code)
Features | Code
Brake Caliper | D
Drum Brake | T
Frame size 250 | 250
Spring activated | F
Electrohydraulically released | E
Automatic adjustment to compensate friction block wear | A
Selectable thrustors 451 / 452 | 451 / 452
Thrustor mounted horizontally | H
Material: Steel | ST
Technical specifications
- Model series: DT 250 FEA
- Function: spring-activated, electrohydraulically released
- Brake type: Drum brake (according to DIN 15 435)
- Frame size: 250
- Automatic adjustment for friction block wear
- Selectable thrustors: type 451 or 452
- Thrustor orientation: horizontal (H)
- Material: Steel (ST)
