Drum brake caliper DT 500 FEM … NC
spring activatedelectro-hydraulic releaseapplications

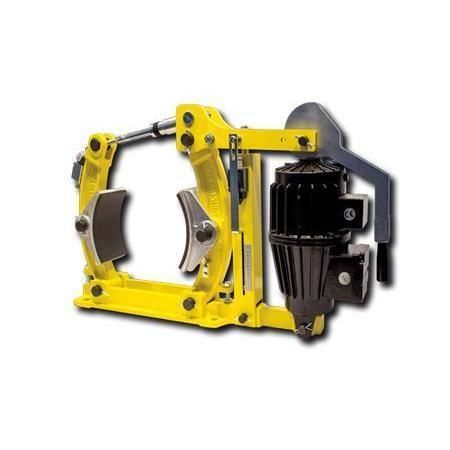

Drum brake caliper - DT 500 FEM … NC - RINGSPANN - spring activated / electro-hydraulic release / applications
Drum brake caliper - DT 500 FEM … NC - RINGSPANN - spring activated / electro-hydraulic release / applications
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Type
drum
Operation
spring activated, electro-hydraulic release
Other characteristics
applications
Torque

2,500 Nm, 4,170 Nm
(1,843.905373 ft.lb, 3,075.634162 ft.lb)

Braking force

12,500 N, 20,800 N

Power

370 W, 590 W

Description

Product overview
Spring-activated, electrohydraulically released drum brake designed to DIN 15 435. Material: cast (designation NC). Suitable for industrial applications requiring a spring-set, power-released safety brake.

Available Documents
  • Datasheet DT 500 FEM … NC (PDF)
  • Drum Brake DT product flyer (PDF)
  • 3D CAD models (STEP / ZIP)
  • Installation instruction DT XXX FEM-FEA ST-NC (PDF)
  • Industrial brakes catalogue (PDF)

Product Details (table)
Features | Code
Brake Caliper | D
Drum Brake | T
Frame size 500 | 500
Spring activated | F
Electrohydraulically released | E
Manual adjustment to accommodate friction block wear | M
Thrustors 455 or 456 are available for selection | 455 / 456
Material: Cast | NC

Technical specifications
  • Type: Brake caliper, drum brake design (DT series)
  • Activation: Spring activated
  • Release: Electrohydraulic
  • Frame size: 500
  • Manual adjustment to compensate friction block wear
  • Selectable thrustors: 455 or 456
  • Material: Cast (designation NC)
  • Standard: Conforms to DIN 15 435
