Disc brake caliper DV 035 FPM series
spring activatedwith pneumatic releasemanual

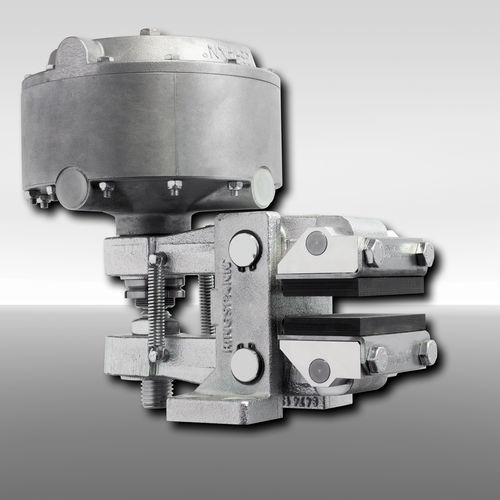

Disc brake caliper - DV 035 FPM series - RINGSPANN - spring activated / with pneumatic release / manual
Disc brake caliper - DV 035 FPM series - RINGSPANN - spring activated / with pneumatic release / manual

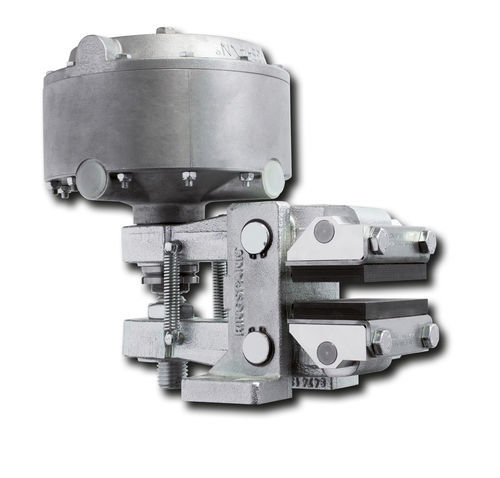

Disc brake caliper - DV 035 FPM series - RINGSPANN - spring activated / with pneumatic release / manual - image - 2
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Type
disc
Operation
spring activated, with pneumatic release, manual
Braking force

Min.: 4,600 N

Max.: 19,500 N

Description

The DV 035 FPM brake caliper from RINGSPANN is spring-activated and pneumatically released.


Features (Code)
Brake Caliper (D)
Mounting to the machine parallel to the brake disc (V)
Frame size 035 (035)
Spring activated (F)
Pneumatically released (P)
Manual adjustment to accommodate friction block wear (M)
Thrusters 025, 035, 045 ,102, 111 or 122 are available (025/035/045/102/111/122)
Thruster mounted right or left available (R/L)
Thickness of brake disc 12,5 mm, 25 mm, 30 mm or 40 mm (12/25/30/40)
