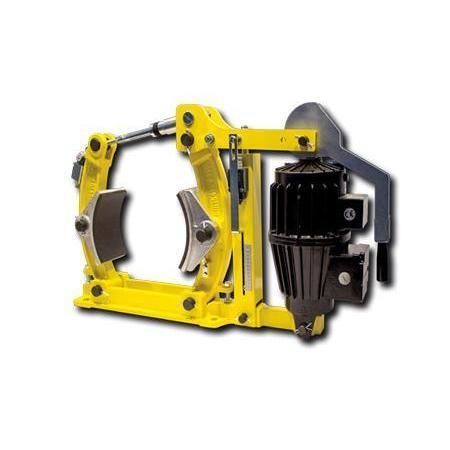

Caliper disc brake caliper DT 250 FEM … NCdrumelectro-hydraulicspring activated
Add to favorites
Compare this product
Characteristics
- Type
- caliper disc, drum
- Operation
- spring activated, electro-hydraulic
- Torque
260 Nm, 350 Nm, 700 Nm
(191.766159 ft.lb, 258.146752 ft.lb, 516.293504 ft.lb)- Braking force
2,600 N, 3,500 N, 7,000 N
- Power
130 W, 180 W, 240 W
Description
Product overview
Available documents and models
Features / Codes
Technical specifications
- Spring-activated, electrohydraulically released brake caliper designed for drum brake applications
- Frame size: 250
- Body material: cast (NC)
- Manual adjustment for friction block wear
- Actuators available: 451, 452, 453
- Complies with Drum Brake standard DIN 15 435
Available documents and models
- Datasheet DT 250 FEM … NC (PDF)
- Drum Brake flyer (PDF)
- 3D CAD models (ZIP/STEP)
- Installation instruction DT XXX FEM-FEA ST-NC (PDF)
- Industrial brakes catalogue (PDF)
Features / Codes
- Brake caliper — D
- Drum brake — T
- Frame size 250 — 250
- Spring activated — F
- Electrohydraulically released — E
- Manual adjustment for friction block wear — M
- Actuators/options — 451 / 452 / 453
- Material: Cast — NC
Technical specifications
- Product type: Brake caliper / Drum brake
- Designation: DT 250 FEM … NC
- Frame size: 250
- Activation: Spring activated
- Release: Electrohydraulic
- Manual adjustment: Yes
- Available actuators/options: 451, 452, 453
- Material: Cast (NC)
- Standard: DIN 15 435 (Drum Brake)
