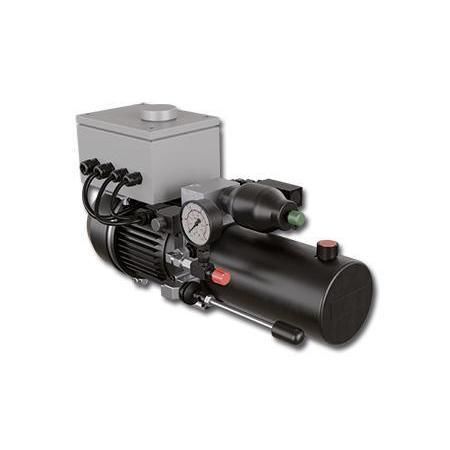

Electric hydraulic power unit HTP3 series
oilautomatic

Electric hydraulic power unit - HTP3 series - RINGSPANN - oil / automatic
Electric hydraulic power unit - HTP3 series - RINGSPANN - oil / automatic
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Power source
electric
Applications
oil
Other characteristics
automatic
Operating pressure

200 bar, 250 bar
(2,901 psi, 3,626 psi)

Nominal power

0.75 kW, 1.1 kW
(1.02 hp, 1.5 hp)

Flow rate

1.7 l/min, 2.4 l/min
(0.45 us gal/min, 0.63 us gal/min)

Tank capacity

2.5 l
(0.66 gal)

Description

For the operation of hydraulic brakes
For fast response times equipped with pressure accumulator


Working conditions
  • Ambient temperature: -20 °C / +40 °C
  • Air humidity:


Monitoring switch
  • The oil pressure builds up when the motor is switched on
  • The pressure switch enables the motor to be switched off when the release pressure is reached
  • The seat-valve opens when electric power supply is interrupted. The system pressure will be released.


Notes
  • Fastening: 2 mounting threads M10 x 12 mm deep
