Drum brake caliper DT 500 FEA … NC

spring activatedelectro-hydraulic release

Overview

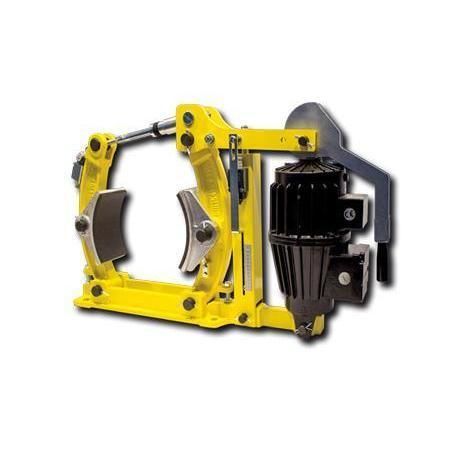

Spring-activated, electrohydraulically released drum brake designed according to DIN 15 435. Body material: cast.

Documents (available)

• Datasheet DT 500 FEA … NC
• Drum Brake DT product flyer
• 3D CAD models (STEP/ZIP)
• Installation instruction DT XXX FEM-FEA ST-NC
• Industrial brakes catalogue

Description / Function
Brake caliper engineered for drum brake applications. Activation is by spring with electrohydraulic release; the unit features automatic adjustment to compensate friction block wear. Selectable thrustors: type 455 or 456. Construction uses a cast body and complies with DIN 15 435. 3D models and installation documentation facilitate integration.

Features / Codes

• Product type: Brake caliper (drum brake) — Code D / T
• Frame size: 500 — Code 500
• Activation: Spring-activated — Code F
• Release: Electrohydraulically released — Code E
• Automatic adjustment for friction block wear — Code A
• Thrustors available: 455 or 456
• Material: Cast — Code NC
• Standard: DIN 15 435

Characteristics / technical specifications

• Model: DT 500 FEA … NC
• Brake type: Drum brake, brake caliper design
• Frame size: 500
• Activation / release: Spring-activated / electrohydraulically released
• Adjustment: Automatic compensation for friction block wear
• Compatible thrustors: Type 455 or 456
• Material: Cast (designation NC)
• Standards: Designed according to DIN 15 435
