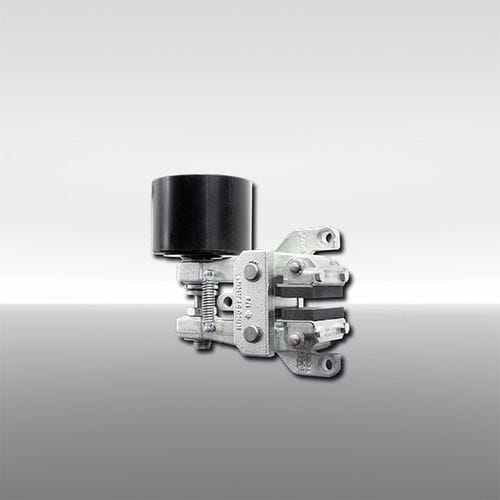

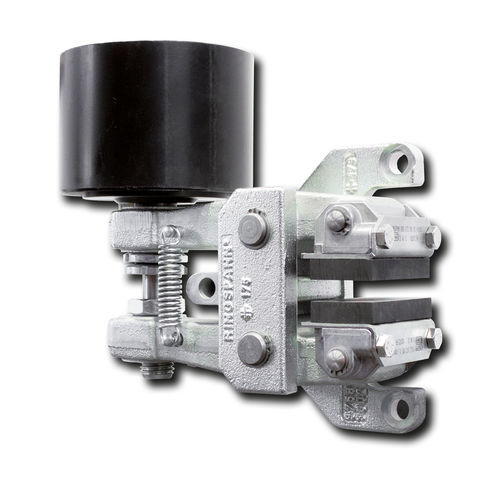

Disc brake caliper DH 030 FPM
spring activatedwith pneumatic releasemanual

Disc brake caliper - DH 030 FPM - RINGSPANN - spring activated / with pneumatic release / manual
Disc brake caliper - DH 030 FPM - RINGSPANN - spring activated / with pneumatic release / manual
Disc brake caliper - DH 030 FPM - RINGSPANN - spring activated / with pneumatic release / manual - image - 2
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Type
disc
Operation
spring activated, with pneumatic release, manual
Braking force

Max.: 13,500 N

Min.: 4,800 N

Description

The DH 030 FPM brake caliper from RINGSPANN is spring-activated and pneumatically released.

Features (Code)
Brake Caliper (D)
Mounting to the machine at right angles to the brake disc (H)
Frame size 030 (030)
Spring activated (F)
Pneumatically released (P)
Manual adjustment to accommodate friction block wear (M)
Thrusters 025, 035, 045 or 101 are available (025/035/045/101)
Thruster mounted right or left available (R/L)
Thickness of brake disc 12,5 mm or 25 mm (12/25)
