Drum brake caliper DT 250 FEA … ST
spring activatedelectro-hydraulic releaseapplications

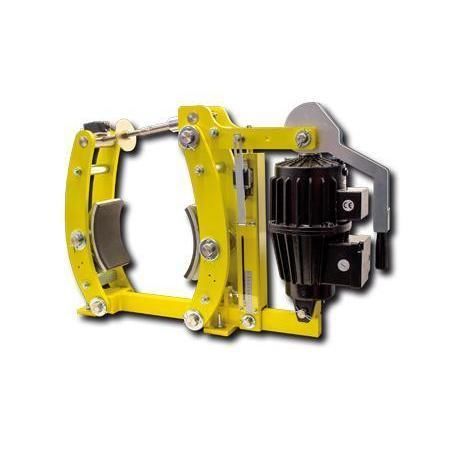

Drum brake caliper - DT 250 FEA … ST - RINGSPANN - spring activated / electro-hydraulic release / applications
Drum brake caliper - DT 250 FEA … ST - RINGSPANN - spring activated / electro-hydraulic release / applications
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Type
drum
Operation
spring activated, electro-hydraulic release
Other characteristics
applications
Torque

300 Nm, 400 Nm, 750 Nm
(221.268645 ft.lb, 295.02486 ft.lb, 553.171612 ft.lb)

Braking force

3,000 N, 4,000 N, 7,500 N

Power

130 W, 180 W, 240 W

Description

Product
Spring-activated, electrohydraulically released drum brake suitable for industrial applications. Built to DIN 15 435. Material: Steel (ST). Frame size: 250.

Documents / Downloads
  • Datasheet DT 250 FEA … ST (PDF)
  • Drum Brake DT flyer (PDF)
  • 3D CAD models (STEP / ZIP)
  • Installation instruction DT XXX FEM-FEA ST-NC (PDF)
  • Industrial brakes catalogue (PDF)


Features (table)
Features | Code
Brake caliper | D
Drum Brake | T
Frame size 250 | 250
Spring activated | F
Electrohydraulically released | E
Automatic adjustment to counter friction block wear | A
Thrustors 451, 452 or 453 are available for selection | 451 / 452 / 453
Material: Steel | ST

Technical specifications
  • Type: Spring-activated – electrohydraulically released drum brake
  • Standard: DIN 15 435
  • Frame size: 250
  • Material: Steel (ST)
  • Brake elements: Brake caliper and drum brake
  • Activation: Spring-activated
  • Release: Electrohydraulic
  • Automatic adjustment to compensate friction block wear
  • Compatible thrustors: 451, 452, 453
