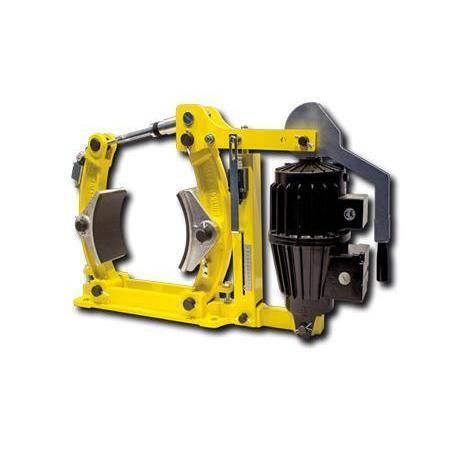

Caliper disc brake caliper DT 400 FEM … NCdrumelectro-hydraulicspring activated
Add to favorites
Compare this product
Characteristics
- Type
- caliper disc, drum
- Operation
- spring activated, electro-hydraulic, electro-hydraulic release
- Other characteristics
- safety, parking, for heavy-duty applications, for cranes, winch, for machine tools
- Torque
525 Nm, 1,040 Nm, 1,300 Nm, 2,075 Nm
(387.220128 ft.lb, 767.064635 ft.lb, 958.830794 ft.lb, 1,530.44146 ft.lb)- Braking force
3,300 N, 6,500 N, 8,100 N, 13,000 N
- Power
180 W, 240 W, 280 W, 370 W
Description
Product
Brake caliper DT 400 FEM … NC — spring-activated, electrohydraulically released drum brake according to DIN 15 435. Frame size 400. Material: cast (NC). Manual adjustment for friction block wear. Compatible thrustors: 452–455.
Key features
Available documents
Applications
Designed for industrial machinery and heavy rotating equipment such as cranes, winches and conveyors where a spring-applied, electrohydraulically released drum brake is required for safety, holding and parking functions.
Technical specifications
Brake caliper DT 400 FEM … NC — spring-activated, electrohydraulically released drum brake according to DIN 15 435. Frame size 400. Material: cast (NC). Manual adjustment for friction block wear. Compatible thrustors: 452–455.
Key features
- Type: Brake caliper / Drum brake
- Frame size: 400
- Actuation: Spring activated (F); Release: Electrohydraulic (E)
- Manual adjustment: for friction block wear (M)
- Selectable thrustors: 452, 453, 454, 455
- Material: Cast (NC)
- Standard: Drum brake according to DIN 15 435
Available documents
- Datasheet DT 400 FEM … NC
- Drum Brake flyer
- 3D CAD models (STEP / ZIP)
- Installation instructions DT XXX FEM-FEA ST-NC
- Industrial brakes catalogue
Applications
Designed for industrial machinery and heavy rotating equipment such as cranes, winches and conveyors where a spring-applied, electrohydraulically released drum brake is required for safety, holding and parking functions.
Technical specifications
- Product type: Brake caliper / Drum brake
- Frame size: 400
- Actuation: Spring activated; Release: Electrohydraulic
- Adjustment: Manual adjustment for friction block wear
- Selectable thrustors: 452, 453, 454, 455
- Material: Cast (NC)
- Standard: DIN 15 435
