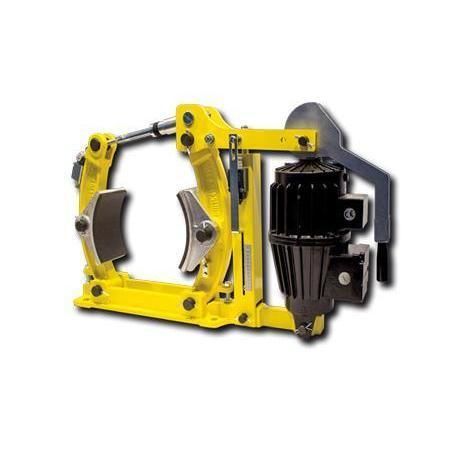

Drum brake caliper DT 315 FEA … NCspring activatedelectro-hydraulic release
Add to favorites
Compare this product
Characteristics
- Type
- drum
- Operation
- spring activated, electro-hydraulic release
- Torque
285 Nm, 425 Nm, 850 Nm, 1,070 Nm, 1,700 Nm
(210.205213 ft.lb, 313.463913 ft.lb, 626.927827 ft.lb, 789.1915 ft.lb, 1,253.855654 ft.lb)- Braking force
2,300 N, 3,400 N, 6,700 N, 8,500 N, 13,500 N
- Power
130 W, 180 W, 240 W, 280 W, 370 W
Description
Product overview
Documentation available
Features (codes)
Applications / Technical specifications
- Drum brake caliper DT 315 FEA … NC (spring‑activated, electrohydraulically released)
- Frame size: 315
- Body material: cast (NC)
- Automatic adjustment to compensate friction block wear
- Selectable thrustors: 451, 452, 453, 454, 455
- Standard: DIN 15 435 (drum brake)
Documentation available
- Datasheet DT 315 FEA … NC
- Flyer: Drum Brake DT
- Installation instruction: DT XXX FEM‑FEA ST‑NC
- 3D CAD download (STEP)
Features (codes)
- Brake caliper — D
- Drum brake — T
- Frame size 315 — 315
- Spring activated — F
- Electrohydraulically released — E
- Automatic adjustment — A
- Selectable thrustors 451–455 — 451 to 455
- Material: cast — NC
Applications / Technical specifications
- Model family: DT 315 FEA
- Brake type: Drum brake (spring‑activated, electrohydraulically released)
- Standards: DIN 15 435
- Frame size: 315
- Material: cast (NC)
- Actuation: spring activated (F) with electrohydraulic release (E)
- Automatic wear compensation: yes (A)
- Selectable thrustors: 451, 452, 453, 454, 455
