Drum brake caliper DT 630 FEA … ST
spring activatedelectro-hydraulic release

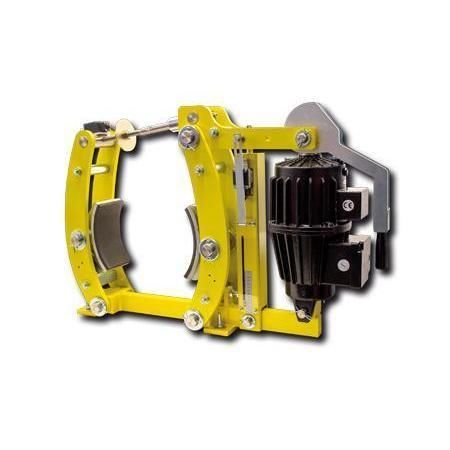

Drum brake caliper - DT 630 FEA … ST - RINGSPANN - spring activated / electro-hydraulic release
Drum brake caliper - DT 630 FEA … ST - RINGSPANN - spring activated / electro-hydraulic release
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Type
drum
Operation
spring activated, electro-hydraulic release
Torque

3,100 Nm, 5,000 Nm, 7,200 Nm
(2,286.442663 ft.lb, 3,687.810746 ft.lb, 5,310.447475 ft.lb)

Power

370 W, 590 W, 680 W

Description

Overview
Spring-activated, electrohydraulically released drum brake caliper DT 630 FEA … ST designed according to DIN 15 435. Material: steel (ST). Automatic adjustment compensates for friction-block wear. Thrustor options: 455, 456, 457.

Available documents
  • Datasheet DT 630 FEA … ST
  • Drum Brake DT product flyer
  • Installation instruction DT XXX FEM-FEA ST-NC
  • 3D-CAD download (STEP/ZIP)


Features / Product data
Features | Code
Brake caliper | D
Drum brake | T
Frame size | 630
Spring activated | F
Electrohydraulically released | E
Automatic wear adjustment | A
Thrustor options | 455, 456, 457
Material | ST

Technical specifications
  • Model series: DT
  • Designation: DT 630 FEA … ST
  • Frame size: 630
  • Actuation: spring-activated (F)
  • Release: electrohydraulically released (E)
  • Automatic wear adjustment: yes (A)
  • Compatible thrustors: 455, 456, 457
  • Material: steel (ST)
  • Standard: Drum Brake according to DIN 15 435
