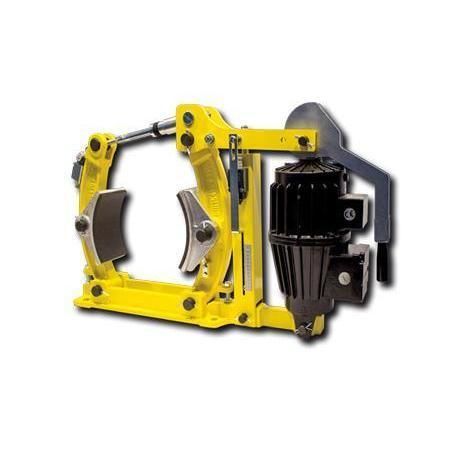

Drum brake caliper DT 200 FEM … NCcaliper discspring activatedmanually-activated
Add to favorites
Compare this product
Characteristics
- Type
- caliper disc, drum
- Operation
- spring activated, manually-activated, electro-hydraulic release
- Other characteristics
- applications
- Torque
230 Nm, 310 Nm
(169.639294 ft.lb, 228.644266 ft.lb)- Braking force
2,875 N, 3,875 N
- Power
130 W, 180 W
Description
Overview
Spring-activated, electrohydraulically released drum brake compliant with DIN 15 435. Brake caliper DT 200 FEM … NC for industrial drum brake applications. Material: cast.
Product resources
Features (table)
Features — Code
Brake Caliper — D
Drum Brake — T
Frame size 200 — 200
Spring activated — F
Electrohydraulically released — E
Manual adjustment to accommodate friction block wear — M
Thrustors 451 or 452 available — 451 / 452
Material: Cast — NC
Characteristics / technical specifications
Spring-activated, electrohydraulically released drum brake compliant with DIN 15 435. Brake caliper DT 200 FEM … NC for industrial drum brake applications. Material: cast.
Product resources
- Datasheet DT 200 FEM … NC (PDF)
- Drum Brake DT flyer (PDF)
- 3D CAD models (STEP/ZIP)
- Installation instruction DT XXX FEM-FEA ST-NC (PDF)
- Industrial brakes catalogue
Features (table)
Features — Code
Brake Caliper — D
Drum Brake — T
Frame size 200 — 200
Spring activated — F
Electrohydraulically released — E
Manual adjustment to accommodate friction block wear — M
Thrustors 451 or 452 available — 451 / 452
Material: Cast — NC
Characteristics / technical specifications
- Model: DT 200 FEM … NC
- Type: Brake caliper / Drum brake
- Frame size: 200
- Actuation: Spring activated, electrohydraulically released
- Manual adjustment for friction block wear
- Available thrustors: 451, 452
- Material: Cast
- Standards: Drum brake according to DIN 15 435
- Available documentation: Datasheet, product flyer, 3D CAD models, installation instructions, catalogue
