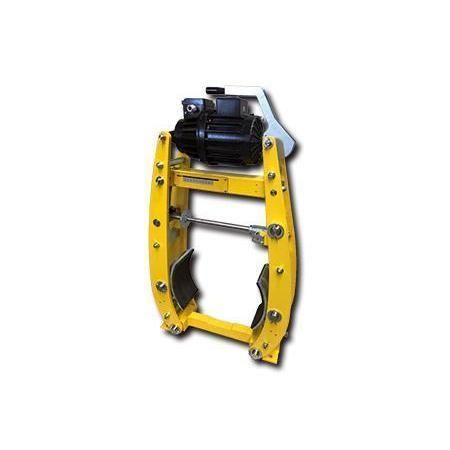

Drum brake caliper DT 315 FEA … H - STspring activatedelectro-hydraulic release
Add to favorites
Compare this product
Characteristics
- Type
- drum
- Operation
- spring activated, electro-hydraulic release
- Torque
255 Nm, 350 Nm, 700 Nm
(188.078348 ft.lb, 258.146752 ft.lb, 516.293504 ft.lb)- Braking force
2,024 N, 2,778 N, 5,556 N
- Power
130 W, 180 W, 250 W
Description
Product overview
Spring-activated, electrohydraulically released drum brake designed according to DIN 15 435. Material: Steel (ST).
Available documents
Features
Spring-activated, electrohydraulically released drum brake designed according to DIN 15 435. Material: Steel (ST).
Available documents
- Datasheet DT 315 FEA H - ST
- Flyer Drum Brake DT
- Installation instruction DT XXX FEA-XXX H-ST
- Industrial brakes catalogue
Features
- Product type: Brake caliper (code D)
- Brake type: Drum brake (code T)
- Frame size: 315
- Activation: Spring activated (F)
- Release: Electrohydraulically released (E)
- Automatic adjustment to compensate friction block wear (A)
- Selectable thrustors: 451, 452, 453
- Thrustor mounting orientation: Horizontal (H)
- Material: Steel (ST)
- Standard: DIN 15 435
