Caliper disc brake caliper DT 200 FEA … ST
drumspring activatedelectro-hydraulic release

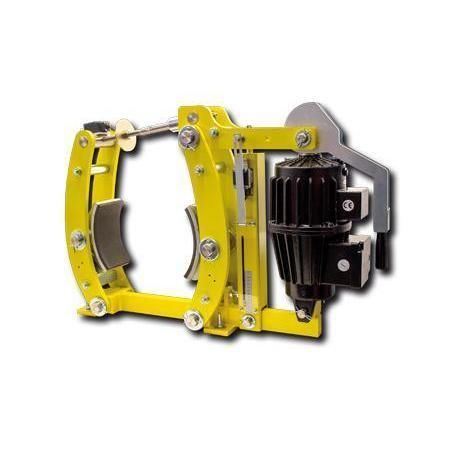

Caliper disc brake caliper - DT 200 FEA … ST - RINGSPANN - drum / spring activated / electro-hydraulic release
Caliper disc brake caliper - DT 200 FEA … ST - RINGSPANN - drum / spring activated / electro-hydraulic release
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Type
caliper disc, drum
Operation
spring activated, electro-hydraulic release
Other characteristics
for heavy-duty applications
Torque

250 Nm, 330 Nm
(184.390537 ft.lb, 243.395509 ft.lb)

Braking force

3,125 N, 4,125 N

Power

130 W, 180 W

Description

Overview
Spring-activated, electrohydraulically released drum brake manufactured in steel to DIN 15 435. Designed for industrial braking applications; automatic adjustment compensates friction block wear. Thrustors type 451 or 452 can be fitted.

Available documentation & resources
  • Datasheet DT 200 FEA … ST
  • Flyer Drum Brake DT
  • 3D CAD models (STEP / ZIP)
  • Installation instruction DT XXX FEM-FEA ST-NC
  • Catalogue Industrial Brakes


Codes & features
  • Brake Caliper — Code: D
  • Drum Brake — Code: T
  • Frame size — 200
  • Spring activated — Code: F
  • Electrohydraulically released — Code: E
  • Automatic wear compensation — Code: A
  • Selectable thrustors — 451 / 452
  • Material — ST (Steel)


Description details
The DT 200 FEA … ST is a spring-activated, electrohydraulically released drum brake manufactured in steel according to DIN 15 435. It incorporates automatic adjustment to compensate friction block wear and can be equipped with thrustors type 451 or 452. The unit is supplied with associated datasheet, product flyer, 3D CAD models and installation instructions for integration and mounting.

Technical specifications
  • Product type: Brake Caliper / Drum Brake
  • Model series: DT 200 FEA
  • Frame size: 200
  • Actuation: Spring activated, electrohydraulically released
  • Automatic wear compensation: Yes
  • Selectable thrustors: 451 or 452
  • Material: Steel (designation ST)
  • Standards: Drum Brake according to DIN 15 435
  • Available resources: Datasheet, Flyer, 3D CAD models (STEP), Installation instructions, Catalogue
