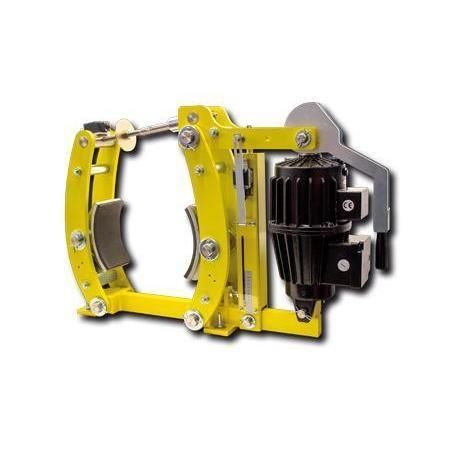

Drum brake caliper DT 400 FEA … STspring activatedelectro-hydraulic release
Add to favorites
Compare this product
Characteristics
- Type
- drum
- Operation
- spring activated, electro-hydraulic release
- Torque
680 Nm, 1,300 Nm, 2,500 Nm
(501.542262 ft.lb, 958.830794 ft.lb, 1,843.905373 ft.lb)- Braking force
4,200 N, 8,100 N, 15,600 N
- Power
180 W, 240 W, 370 W
Description
Product overview
Available documents and resources
Features / Product data
Technical specifications
- Spring-activated, electrohydraulically released drum brake
- Conforms to DIN 15 435
- Material: Steel (ST)
- Frame size: 400
Available documents and resources
- Datasheet DT 400 FEA … ST
- Drum Brake DT flyer
- 3D CAD models (STEP)
- Installation instruction DT XXX FEM-FEA ST-NC
- Catalogue: Industrial Brakes
Features / Product data
- Product type: Brake caliper (Code: D)
- Brake design: Drum brake (Code: T)
- Frame size: 400 (Code: 400)
- Activation: Spring-activated (Code: F)
- Release: Electrohydraulically released (Code: E)
- Automatic adjustment for friction block wear (Code: A)
- Compatible thrustors: 452, 453, 455
- Material: Steel (Code: ST)
Technical specifications
- Type: Brake caliper (drum brake)
- Actuation: Spring-activated; electrohydraulic release
- Standards: DIN 15 435
- Frame size: 400
- Automatic adjustment: Yes (compensates friction block wear)
- Compatible thrustors: 452, 453, 455
- Material: Steel (ST)
- Resources: 3D CAD models and installation instruction available
