Disc brake DH 012 FEM series
electromagneticspring activated

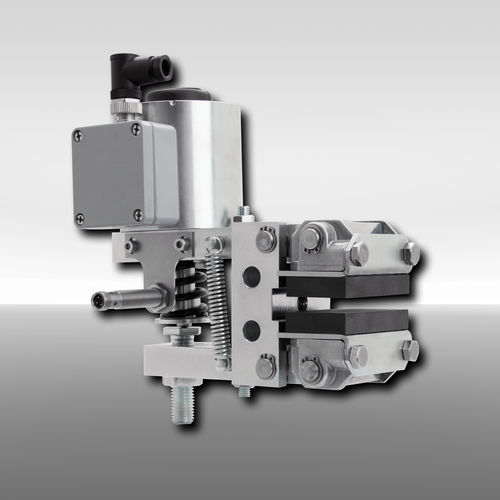

Disc brake - DH 012 FEM series - RINGSPANN - electromagnetic / spring activated
Disc brake - DH 012 FEM series - RINGSPANN - electromagnetic / spring activated
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Type
disc
Operation
electromagnetic, spring activated
Torque

Max.: 340 Nm
(250.771131 ft.lb)

Min.: 110 Nm
(81.131836 ft.lb)

Braking force

1,850 N

Description

spring activated – electromagnetically released Features - Code Brake Caliper - D Mounting to the machine at right angles to the brake disc - H Frame size 012 - 012 Spring activated - F Electromagnetically released - E Manual adjustment to accommodate friction block wear - M Electromagnet for 110/120 VAC Electromagnet for 230/240 VAC 440 or 450 are available for selection - 440 450 Thruster mounted right or left available - R L Thickness of brake disc 12,5 mm - 12
