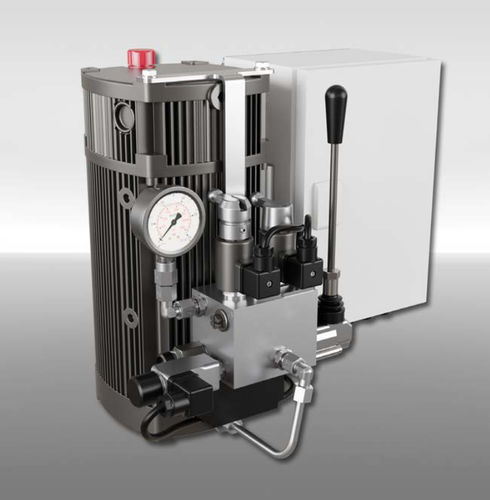

Electric hydraulic power unit HKA 291 seriesbolt tensioneroilcompact
Add to favorites
Compare this product
Characteristics
- Power source
- electric
- Applications
- oil, bolt tensioner
- Other characteristics
- compact, modular
- Operating pressure
Max.: 245 bar
(3,553 psi)Min.: 150 bar
(2,176 psi)- Nominal power
1.6 kW
(2.18 hp)- Flow rate
4.3 l/min
(1.14 us gal/min)- Tank capacity
2.7 l, 5 l
(0.71 gal, 1.32 gal)
Description
For the operation of hydraulic brakes
Available for a wide pressure and temperature range
Features
Notes
Options
Available for a wide pressure and temperature range
Features
- Compact design
- Optimum heat dissipation thanks to the extruded profile
- With manual hand pump function as standard
- Ambient temperature: -20 °C / +50 °C
- Flexibly expandable
- 2.7 litre oil usable volume as standard
- Electrical level and temperature monitoring and electrical thermal switch (oil temperature)
Notes
- Fastening: 4 mounting threads M8 x 15 deep
Options
- Pressure switch for pressure monitoring
- Additional switching valves for special functions
- Further options can be flange-mounted in modular design, e.g. step braking, soft braking or pressure accumulator
- Control cabinet for controlled operation of the hydraulic unit manually or externally
- Terminal box
