Drum brake caliper DT 200 FEA … H - ST
spring activatedelectro-hydraulic release

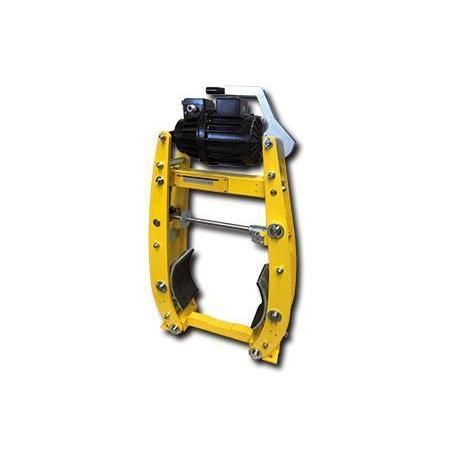

Drum brake caliper - DT 200 FEA … H - ST - RINGSPANN - spring activated / electro-hydraulic release
Drum brake caliper - DT 200 FEA … H - ST - RINGSPANN - spring activated / electro-hydraulic release
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Type
drum
Operation
spring activated, electro-hydraulic release
Torque

200 Nm
(147.51243 ft.lb)

Braking force

2,500 N

Power

130 W

Description

Overview
Spring-activated, electrohydraulically released drum brake caliper designed according to DIN 15 435. Model: DT 200 FEA … H - ST. Material: steel.

Available documents
  • Datasheet DT 200 FEA … H - ST
  • Drum Brake flyer
  • Installation and maintenance manual


Features (table)
Feature | Code
Brake caliper | D
Drum brake | T
Frame size 200 | 200
Spring activated | F
Electrohydraulically released | E
Automatic adjustment for friction block wear | A
Thrustors available | 451, 452
Thrustor mounted horizontally | H
Material | ST

Technical specifications
  • Type: Drum brake caliper, spring-activated, electrohydraulically released (DIN 15 435).
  • Frame size: 200.
  • Automatic wear compensation for friction blocks: Yes (A).
  • Compatible thrustors: Types 451 or 452.
  • Thrustor mounting orientation: horizontal (H).
  • Material / construction: Steel (ST).
