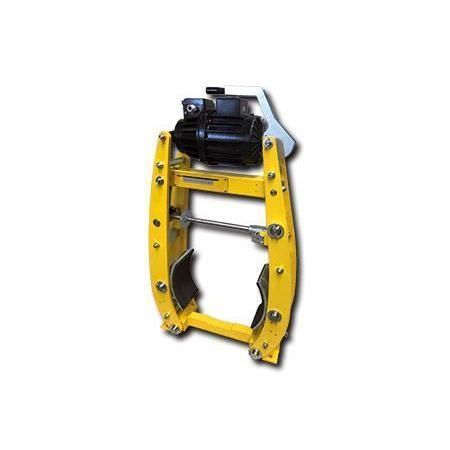

Drum brake caliper DT 500 FEA … H - ST
spring activatedelectro-hydraulic release

Drum brake caliper - DT 500 FEA … H - ST - RINGSPANN - spring activated / electro-hydraulic release
Drum brake caliper - DT 500 FEA … H - ST - RINGSPANN - spring activated / electro-hydraulic release
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Type
drum
Operation
spring activated, electro-hydraulic release
Torque

2,700 Nm, 4,500 Nm
(1,991.417803 ft.lb, 3,319.029672 ft.lb)

Braking force

13,500 N, 22,500 N

Power

350 W, 750 W

Description

Product type
Spring-activated, electrohydraulically released drum brake caliper. Compliant with DIN 15 435. Material: Steel (ST).

Documentation available
  • Datasheet DT 500 FEA … H - ST
  • Product Flyer Drum Brake DT
  • Installation Instruction DT XXX FEA-XXX H-ST


Features (table)
Features | Code
Brake Caliper | D
Drum Brake | T
Frame size 500 | 500
Spring activated | F
Electrohydraulically released | E
Automatic adjustment to counter friction block wear | A
Thrustor 455 | 455
Thrustor mounted horizontally | H
Material: Steel | ST

Characteristics / technical specifications
  • Type: Brake caliper (drum brake)
  • Brake standard: DIN 15 435
  • Frame size: 500
  • Activation: spring-activated
  • Release: electrohydraulically released
  • Automatic adjustment to compensate friction block wear
  • Thrustor: 455, mounted horizontally (H)
  • Material: Steel (designation ST)
