Caliper disc brake caliper DT 315 FEM … NC
drumspring activatedelectro-hydraulic release

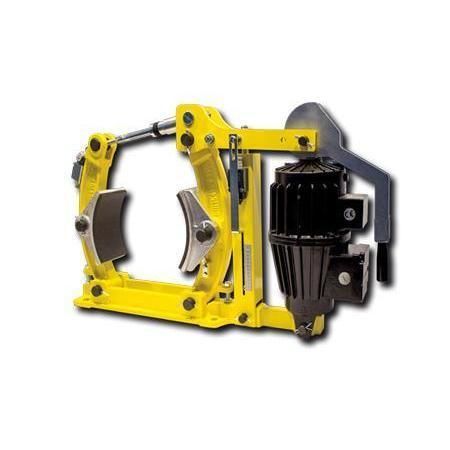

Caliper disc brake caliper - DT 315 FEM … NC - RINGSPANN - drum / spring activated / electro-hydraulic release
Caliper disc brake caliper - DT 315 FEM … NC - RINGSPANN - drum / spring activated / electro-hydraulic release
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Type
caliper disc, drum
Operation
spring activated, electro-hydraulic release
Other characteristics
applications
Torque

285 Nm, 425 Nm, 850 Nm, 1,070 Nm, 1,700 Nm
(210.205213 ft.lb, 313.463913 ft.lb, 626.927827 ft.lb, 789.1915 ft.lb, 1,253.855654 ft.lb)

Braking force

2,300 N, 3,400 N, 6,700 N, 8,500 N, 13,500 N

Power

130 W, 180 W, 240 W, 280 W, 370 W

Description

Product overview
Spring-activated, electrohydraulically released drum brake designed as brake caliper / drum brake. Frame size 315. Material: cast (designation NC). Designed for industrial braking applications in accordance with DIN 15 435.

Available resources
  • Datasheet DT 315 FEM … NC (PDF)
  • Flyer Drum Brake DT (PDF)
  • 3D CAD models (STEP, ZIP)
  • Installation instruction DT XXX FEM-FEA ST-NC (PDF)
  • Industrial brakes catalogue (PDF)

Features / Product table
Features | Code
Brake Caliper | D
Drum Brake | T
Frame size 315 | 315
Spring activated | F
Electrohydraulically released | E
Manual adjustment to accommodate friction block wear | M
Selectable thrustors: 451, 452, 453, 454 or 455 | 451 to 455
Material: Cast | NC

Characteristics / Technical specifications
  • Type: Brake Caliper / Drum Brake
  • Frame size: 315
  • Actuation: Spring activated, electrohydraulically released
  • Manual adjustment to accommodate friction block wear
  • Selectable thrustors: 451, 452, 453, 454, 455
  • Material: Cast (designation NC)
  • Standards: Drum Brake according to DIN 15 435
  • Additional files: Datasheet, Flyer, 3D CAD models (STEP), Installation instructions, Catalogue
