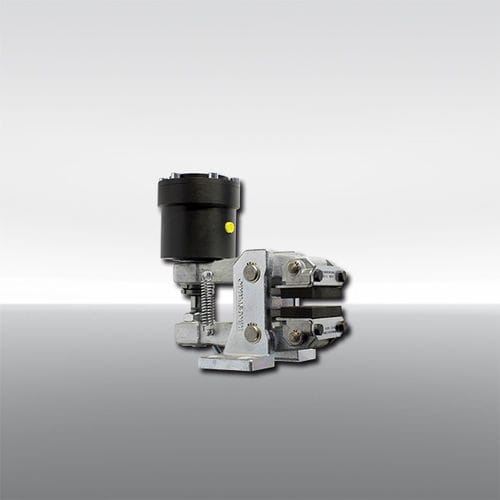

Disc brake caliper DV 030 FHM serieshydraulic releasespring activated
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- hydraulic release, spring activated
- Torque
Max.: 1,750 Nm
(1,290.733761 ft.lb)Min.: 540 Nm
(398.283561 ft.lb)- Braking force
Max.: 13,500 N
Min.: 4,800 N
Description
spring activated – hydraulically released
Features - Code
Brake Caliper - D
Mounting to the machine parallel to the brake disc - V
Frame size 030 - 030
Spring activated - F
Hydraulically released - H
Manual adjustment to accommodate friction block wear - M
Thruster 250 - 250
Thruster mounted right or left available - R/L
Thickness of brake disc 12,5 mm or 25 mm - 12/25
Features - Code
Brake Caliper - D
Mounting to the machine parallel to the brake disc - V
Frame size 030 - 030
Spring activated - F
Hydraulically released - H
Manual adjustment to accommodate friction block wear - M
Thruster 250 - 250
Thruster mounted right or left available - R/L
Thickness of brake disc 12,5 mm or 25 mm - 12/25
