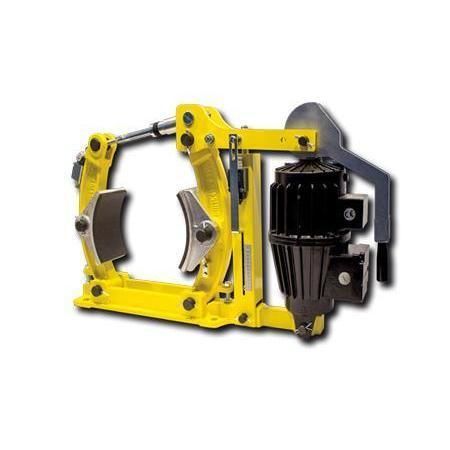

Drum brake caliper DT 250 FEA … NCspring activatedelectro-hydraulic releaseadjustable
Add to favorites
Compare this product
Characteristics
- Type
- drum
- Operation
- spring activated, electro-hydraulic release
- Other characteristics
- adjustable
- Torque
260 Nm, 350 Nm, 700 Nm
(191.766159 ft.lb, 258.146752 ft.lb, 516.293504 ft.lb)- Braking force
2,600 N, 3,500 N, 7,000 N
- Power
130 W, 180 W, 240 W
Description
Overview
Brake caliper DT 250 FEA … NC. Spring‑activated with electrohydraulic release. Drum brake designed to DIN 15 435. Frame size: 250. Material: cast (NC).
Available documents
Features (table)
Technical specifications
Brake caliper DT 250 FEA … NC. Spring‑activated with electrohydraulic release. Drum brake designed to DIN 15 435. Frame size: 250. Material: cast (NC).
Available documents
- Datasheet DT 250 FEA … NC
- Flyer Drum Brake DT
- 3D CAD models (STEP)
- Installation instruction DT XXX FEM-FEA ST-NC
- Catalogue Industrial Brakes
Features (table)
- Brake Caliper | D
- Drum Brake | T
- Frame size 250 | 250
- Spring activated | F
- Electrohydraulically released | E
- Automatic adjustment for friction block wear | A
- Thrustors available | 451, 452, 453
- Material | NC
Technical specifications
- Product type: Brake caliper (code D)
- Brake variant: Drum brake (code T) according to DIN 15 435
- Frame size: 250
- Activation: Spring‑activated (code F)
- Release: Electrohydraulically released (code E)
- Automatic adjustment to compensate friction block wear (code A)
- Selectable thrustors/actuators: 451, 452 or 453
- Material: Cast (NC)
