Drum brake caliper DT 315 FEA … ST
spring activatedelectro-hydraulic release

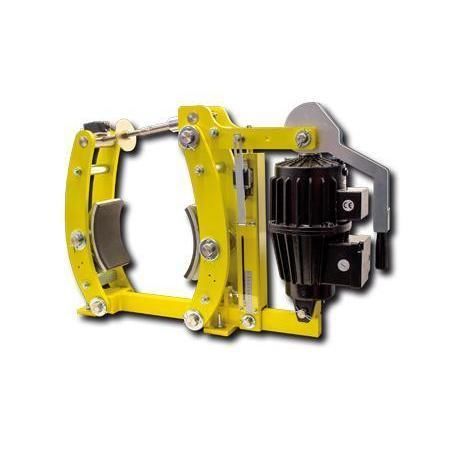

Drum brake caliper - DT 315 FEA … ST - RINGSPANN - spring activated / electro-hydraulic release
Drum brake caliper - DT 315 FEA … ST - RINGSPANN - spring activated / electro-hydraulic release
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Type
drum
Operation
spring activated, electro-hydraulic release
Torque

350 Nm, 480 Nm, 950 Nm, 1,800 Nm
(258.146752 ft.lb, 354.029832 ft.lb, 700.684042 ft.lb, 1,327.611869 ft.lb)

Braking force

2,800 N, 3,800 N, 7,500 N, 14,300 N

Power

130 W, 180 W, 240 W, 370 W

Description

Product overview
Brake caliper DT 315 FEA … ST by RINGSPANN — spring-activated, electrohydraulically released drum brake according to DIN 15 435. Frame size: 315. Material: Steel (ST). Automatic adjustment compensates for friction block wear. Compatible thrustors: 451, 452, 453, 455.

Available documents
  • Datasheet DT 315 FEA … ST
  • Flyer Drum Brake DT
  • 3D CAD models (STEP)
  • Installation instruction DT XXX FEM-FEA ST-NC
  • Catalogue: Industrial Brakes

Features (table)
Feature — Code
Brake caliper — D
Drum brake — T
Frame size 315 — 315
Spring activated — F
Electrohydraulically released — E
Automatic adjustment to compensate friction block wear — A
Thrustors available: 451, 452, 453 or 455 — 451 to 455
Material: Steel — ST

Technical specifications
  • Model series: DT 315 FEA … ST
  • Brake type: Drum brake (brake caliper)
  • Standard: DIN 15 435
  • Frame size: 315
  • Activation: Spring activated
  • Release: Electrohydraulically released
  • Automatic wear adjustment: Yes
  • Compatible thrustors: 451, 452, 453, 455
  • Material: Steel (ST)
