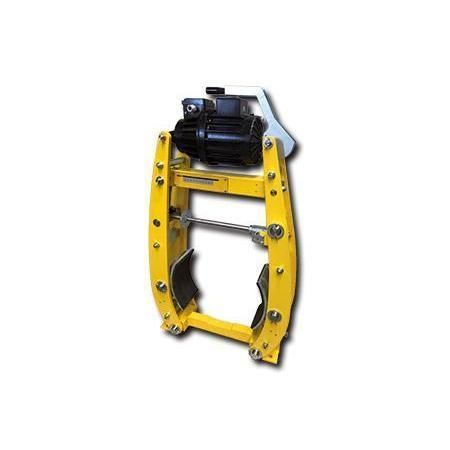

Drum brake caliper DT 400 FEA … H - ST
spring activatedelectro-hydraulic release

Drum brake caliper - DT 400 FEA … H - ST - RINGSPANN - spring activated / electro-hydraulic release
Drum brake caliper - DT 400 FEA … H - ST - RINGSPANN - spring activated / electro-hydraulic release
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Type
drum
Operation
spring activated, electro-hydraulic release
Torque

525 Nm, 1,050 Nm, 2,100 Nm
(387.220128 ft.lb, 774.440257 ft.lb, 1,548.880513 ft.lb)

Braking force

3,282 N, 6,563 N, 13,125 N

Power

180 W, 250 W, 350 W

Description

Overview
Spring-activated, electrohydraulically released drum brake in frame size 400 according to DIN 15 435. Material: Steel.

Features
Brake caliper — Code: D
Drum brake — Code: T
Frame size 400 — Code: 400
Spring activated — Code: F
Electrohydraulically released — Code: E
Automatic adjustment for friction block wear — Code: A
Thrustors available:
  • 452
  • 453
  • 455
Thrustor mounted horizontally — Code: H
Material: Steel — Code: ST

Technical specifications
  • Model series: DT 400 FEA … H - ST
  • Brake type: Drum brake (DIN 15 435)
  • Frame size: 400
  • Activation: spring-activated
  • Release: electrohydraulic
  • Automatic friction block wear adjustment
  • Thrustor mounting: horizontally (H)
  • Compatible thrustors: 452, 453, 455
  • Material: Steel (ST)
