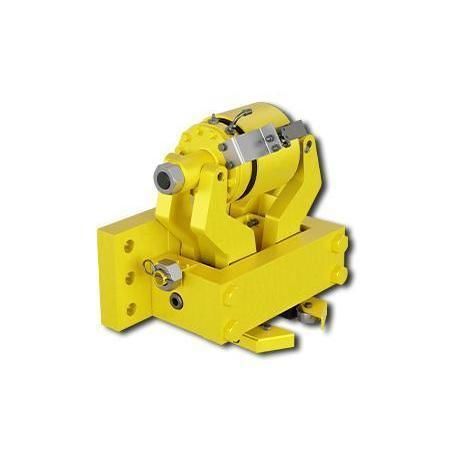

Jaw brake DR 088 FHK

spring activatedhydraulic releasefor guide rails

Product

• Spring-activated, hydraulically released storm brake clamp for rail applications.
• Designed as a rail clamp (frame size 088), model DR 088 FHK.

Documentation and models

• Datasheet (PDF)
• Product flyer
• 3D CAD models (STEP)
• Installation instructions

Features (codes)
Clamp | D
Rail | R
Frame size | 088
Spring activated | F
Hydraulically released | H
No adjustment to counter friction block wear | K
Max. braking force | 500 kN
Thruster mounted in central position | M
Clamping jaws available for rail profiles | A55, A65, A75, A100, A120, 60E1

Usage / Application notes

• Clamping jaws are available for multiple rail profile types to fit different rail geometries.
• The brake provides high braking forces up to 500 kN and is intended for emergency/storm braking on rail installations.

Technical specifications

• Model / type designation: DR 088 FHK
• Frame size: 088
• Operating principle: spring-activated, hydraulically released
• Max. braking force: 500 kN
• Thruster mounting: central position
• No adjustment required to compensate friction block wear
• Compatible clamping jaws: A55, A65, A75, A100, A120, 60E1
• Feature codes: Clamp = D, Rail = R, Spring activated = F, Hydraulically released = H, No adjustment = K, Thruster central = M
