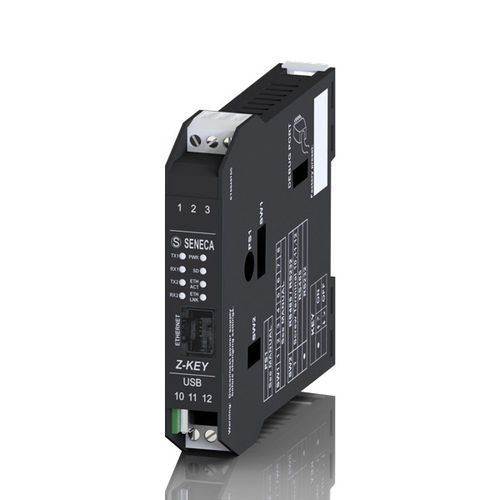

Communication gateway Z-KEY

industrialIoTLAN

Z-KEY is a device that extends networks and allows process data to pass between different IT and industrial communication architecture levels. Z-KEY guarantees the transmission of signals between ModBUS TCP-IP/ ModBUS RTU in 10 operating modes, increasing the number of nodes that can be connected and the distances that can be reached in the network. The device can also extend the serial network by operating as a Remote virtual COM transparent to the serial communication protocol. The device is equipped with 1 Ethernet 100 Tx port and 2 serial ports (RS232/RS485, RS485)and it offers multiple configuration possibilities thanks to DIP-switches, web servers and software tools such as SDD (Seneca Discovery Device), SESC (Seneca Ethernet to Serial Connection), EASY SETUP2. Advanced functions include support for the "Cloud BOX" IoT Server, advanced serial diagnostics, and "quarantine" mode with settable time for failing devices. Power consumption - 2 W @ 24 Vac (typical) Status LED indicators - Power supply Rx-Tx serial communication Link and Ethernet activity Communication - Nr. 1 Fast Ethernet port 100 Tx, RJ45 frontal panel (Max 8 client ModBUS TCP, Max 10 server ModBUS TCP) Nr. 1 RS232 / RS485 commutable serial port, baud rate max 115k on the connector Nr. 1 RS485, baud rate max 115k on IDC10 connector for BUS and clamps Industrial protocols - ModBUS TCP-IP, ModBUS RTU Operating modes - Modbus Gateway Ethernet to Serial (PORT#1) Modbus Gateway Ethernet to Serial (PORT#2) Modbus Gateway Ethernet to Serial (PORT#1 AND PORT#2) Modbus Gateway Serial to Ethernet (PORT#1 AND PORT#2) Modbus Tags Gateway Ethernet to Serial (PORT#1 AND PORT#2 MASTER)
