wastewater pump / electric / submersible / centrifugal

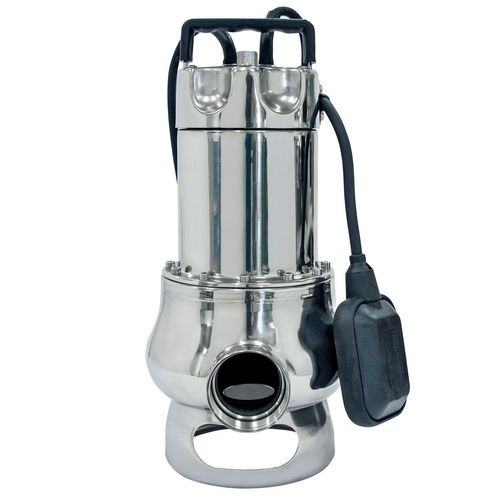

SXG 1100/1400 series Speroni

{{requestButtons}}

Characteristics

  • Media:

    for wastewater

  • Operation:

    electric

  • Priming:

    submersible

  • Type:

    centrifugal

  • Domain:

    industrial

  • Other characteristics:

    drain, stainless steel

  • Flow:

    300 l/min, 400 l/min (79.2516 us gal/min)

  • Head:

    8.2 m, 10.5 m (26'10")

Description

SXG 1100/1400
APPLICATION
Drainage submersible stainless steel water pumps with stainless steel impeller. Able to drain decanting cesspools and to pump waste water for domestic and civil purposes.
OPERATING CONDITIONS
- Liquid temperature up to 35°C (for home use
according to EN 60335-2-41)
Temperature max. liquid: 35°C (for other uses)
- Maximum immersion depth 5 mt.
- Grain size inlet Ø 35 mm
- Min. suction level 65 mm
- Continuous duty
MOTOR
- Dual chamber with oil bath motor
for cooloiling and bearing lubrification
- Mechanical seal in oil bath
- Permanent split capacitor
- Insulation Class F
- Protection IP 68
MATERIALS
- Handle: Stainless Steel AISI 304
- Motor casing: Stainless Steel AISI 304
- Pump body: Stainless Steel AISI 304
- Impeller: Stainless Steel AISI 304
- Suction grid: Stainless Steel AISI 304
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
