Torsionnaly-rigid flexible couplings

Torque: 5,200 Nm - 32,500 Nm
Rotational speed: 2,100 rpm - 2,750 rpm

The VULKARDAN F is the successor of the well-established VULKARDAN E and complements the VULKAN highly flexible couplings product portfolio below the RATO R torque range. In comparison to similar couplings the VULKARDAN F is characterized ...

Torque: 1,000 Nm - 560,000 Nm
Rotational speed: 1,200 rpm - 8,000 rpm

DENFLEX is a rigid coupling for uniform torque transmission. The tooth gear profile enables high torque to be transmitted even in the smallest dimensions. DENFLEX also compensates axial, radial and angular misalignments without generating ...

Torque: 150 Nm - 17,560 Nm
Rotational speed: 3,100 rpm - 19,500 rpm

DISCFLEX couplings are suitable for a range of industrial applications where torque is transmitted from the input shaft to the output shaft alternately through traction and compression of the flexible element. DISCFLEX benefits This ...

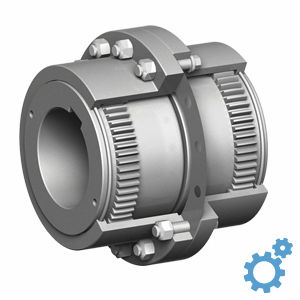

Very high-torque ratings, along with unparalleled bore capacities, give this coupling a great advantage over other types of couplings. SKF Gear Couplings are rated up to 1 310 kNm with a maximum bore of 525 mm. This is a heavy duty coupling ...

Torque: 8,820 Nm - 176,000 Nm

The spacer unit in the modular spacer models can be disassembled and assembled without disassembling the disk coupling portion. The adapter hub type allows for larger shaft bore diameters than standard hubs. ・Applicable shaft diameter ...

Torque: 590 Nm - 8,500 Nm

Compact Flex Couplings with substantially higher capacity. New compact NER Series Flex Couplings enables higher capacity and downsizing through a newly developed disc and optimized bolts. ・Applicable shaft diameter ：Φ25mm～Φ145mm Features ・High ...

Torque: 6.86 Nm - 255 Nm
Rotational speed: 100 rpm - 5,000 rpm

Economical type couplings consisting of sprockets provided with resin chains such as polyacetal. Suitable for drive units of food machineries and light-duty conveyors.

Torque: 1,277 Nm - 185,154 Nm
Rotational speed: 2,000 rpm - 9,000 rpm

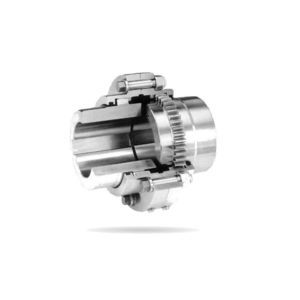

Unequaled bore and torque capacity 1.5° of misalignment per gear mesh Improved fastener corrosion resistance Advanced seal design intensifying contamination resistance Interchangeable with standard AGMA flange interface By incorporating ...

Torque: 1,277 Nm - 185,145 Nm
Rotational speed: 2,000 rpm - 9,000 rpm

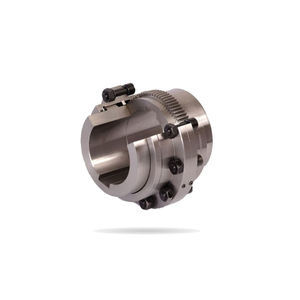

The HercuFlex coupling family has expanded to include the continuous sleeve gear coupling. Utilizing the same industry leading design expertise as seen in the FX style, Lovejoy has incorporated multiple innovations to yield previously ...

Torque: 904 Nm - 161,003 Nm
Rotational speed: 2,000 rpm - 9,000 rpm

In extreme high contamination environments, Lovejoy has transformed the HercuFlex coupling to integrate an advanced seal design when performance degradation is not tolerable. This advanced gear coupling still encompasses the torque and ...

Torque: 35 Nm - 150 Nm
Rotational speed: 7,800 rpm - 22,500 rpm

couplings are shaft connections and transmit torsionally stiff and backlash-free torque. At the same time, they compensate for angular and axial misalignments in single-jointed couplings (Type 950._ _ _) and radial misalignments in double-jointed ...

Torque: 35 Nm - 110,000 Nm
Rotational speed: 2,300 rpm - 22,500 rpm

couplings connect shafts. They transmit torques in a torsionally rigid and backlash-free manner. Single-jointed couplings (Type 950._ _ _) compensate for angular and axial misalignment, double-jointed couplings (Type 951._ _ _) also compensate ...

Torque: 190 Nm - 10,000 Nm
Rotational speed: 8,000 rpm - 30,000 rpm

Backlash-free shaft couplings for torque transducers Torsionally stiff Flexible modular system Backlash Free Compensation of shaft misalignment Continuous temperature up to 120°C Product features Application For HBM torque transducers Design Torsionally ...

Torque: 0.25 Nm - 250 Nm
Rotational speed: 0 rpm - 10,000 rpm

The Single Flex SA2 version of the Servoflex SFC series impresses with its extremely high torsional stiffness combined with possible compensation in axial and angular direction. Due to the light and high-strength aluminum alloy it has ...

Torque: 0.25 Nm - 250 Nm
Rotational speed: 0 rpm - 10,000 rpm

The Double Flex DA2 version of the Servoflex SFC series impresses with its high torsional stiffness including a possible compensation function in axial, parallel and angular direction. Due to the light and high-strength aluminum alloy, ...

Torque: 5 Nm - 25 Nm
Rotational speed: 0 rpm - 10,000 rpm

The Servoflex SFR high damping performance shaft coupling, is designed for high speed and high precision use in combination with Servo- and Steppermotors. Zero backlash with strong torque transmission. By using an HNBR element, vibration ...

Torque: 200 Nm - 110,000 Nm
Rotational speed: 1,300 rpm - 4,200 rpm

ARCUSAFLEX - Highly torsionally flexible rubber disc coupling for internal combustion engine drives * Very high torsional flexibility with a linear torsional deflection characteristic * High torsional vibration and shock load absorbing ...

Torque: 320 Nm - 12,500 Nm
Rotational speed: 14,000 rpm - 33,000 rpm

Torsionally Rigid Coupling for Test Benches. The FLEXDUR - HighSpeed (short form: FD-HS) All-metal couplings are developed and manufactured to the highest standards, especially for applications with higher speeds. FLEXDUR – HIGHSPEED Advantages Torsionally ...

Torque: 18 Nm - 130,000 Nm
Rotational speed: 2,100 rpm - 11,500 rpm

Torsionally rigid, flexible coupling The coupling uses bushed flexible disc packs of stainless spring steel as power transmitting elements. The special shape of the precision bushes results in a uniform tension distribution of the disc ...

Torque: 100 Nm - 3,240 Nm

STANDARD FLEXIBLE COUPLINGS FOR MANY AREAS OF APPLICATION “Standard” flexible couplings are elastic coupling elements developed for installation in the most diverse drive train applications. “Standard” flexible couplings are very often ...

Torque: 1,860 Nm - 4,630,000 Nm

Torque: 1,200 Nm - 7,780,000 Nm

Torque: 700 Nm - 41,500 Nm

Torque: 1,000 Nm - 560,000 Nm
Rotational speed: 1,200 rpm - 8,000 rpm

DENFLEX is a rigid coupling for uniform torque transmission. The tooth gear profile enables high torque to be transmitted even in the smallest dimensions. DENFLEX also compensates axial, radial and angular misalignments without generating ...

Torque: 150 Nm - 660,000 Nm
Rotational speed: 1,600 rpm - 22,500 rpm

DISCFLEX couplings are suitable for a range of industrial applications where torque is transmitted from the input shaft to the output shaft alternately through traction and compression of the flexible element. DISCFLEX benefits This ...

Torque: 5,000 Nm - 120,000 Nm
Rotational speed: 2,300 rpm - 5,200 rpm

The METAFLEX joint shaft metal and stainless steel coupling is a torsionally stiff link style coupling. Due to the allmetal design the coupling is widely dirt and temperature resistant. The bending flexible link element of the coupling ...

Torque: 10 Nm - 2,400 Nm
Rotational speed: 2,800 rpm - 14,000 rpm

The couplings are equally suited to horizontal or vertical shaft applications, providing positive power transmission and absorbing torsional, vibration and impact loads. The standard elastomeric ring is a black thermoplastic rubber of ...

Torque: 33 Nm - 7,000 Nm
Rotational speed: 100 rpm - 7,700 rpm

The coupling consists of two machined cast iron hubs connected by an elastomeric gear ring. Available in 8 basic sizes, with torque capacity to 3300 Nm, the KE coupling provides positive power transmission between shafts, combined ...

Torque: 162 Nm - 18,040 Nm
Rotational speed: 50 rpm - 5,000 rpm

Cross+Morse LRC roller Chain Couplings consist of three high strength components; two special chain sprockets manufactured from high quality medium carbon alloy steels connected by a length of high strength Duplex Roller Chain. The sprockets ...

Torque: 1 Nm - 600 Nm

The Metal bellows coupling is equipped with a hub that is made from aluminum and bellows made from stainless steel. This coupling requires short assembly time and an easy installation due to the presence of its radial clamping hub. If ...

Torque: 1 Nm - 7 Nm
Rotational speed: 0 rpm - 8,000 rpm

23030 is an oldham-type coupling with a radial clamping hub, manufactured by Norelem. The unit is made out of spacer polyacetal, while the hub is made out of aluminum. It has a short assembly time, due to the radial clamping hub. The ...

Features - Sustain very high torque rating - Suitable for high speed applications - Heavy duty design with flexibility - Counters all types misalignment i.e. axial, parallel & angular & large axial movement capacity - Suitable for high ...

Torque: 0.18 Nm - 50.7 Nm
Rotational speed: 30,000, 45,000, 35,000 rpm

MIC Miniature Couplings provide the ideal complement to Magtrol’s TM / TMB / TMHS / TS In-Line Torque Transducers, when they are mounted in a drive train. They can also be used with any Magtrol Hysteresis (HD), Eddy-Current (WB) or Powder ...

Torque: 230 Nm - 4,800 Nm

For fast, frequent and accurate linear positioning! The hydraulic connection ETP-OCTOPUS is suitable when repositioning of machine parts are going to be done frequently, fast and with high precision along the shaft, for example in machine ...

Torque: 29,000 Nm - 270,000 Nm

ETP-HYDROPRESS - QUICK AND PRECISE FASTENING FOR LARGER SHAFTS ETP-HYDROPRESS is available on request. The dimensions and loads in the list below serve as guidelines to make a customized product. It can be made for both larger and smaller ...

Torque: 2,785, 761,403, 3,230, 8,024, 21,557 Nm

Chain Type Wedgegard Couplings are supplied bored and keywayed to customer requirements.. Standard Units for release torques up to 64,000 Nm. Torque is adjustable by Wedgepin ratings. Designs to suit special drive requirements are available. ...

Torque: 485 Nm - 148,125 Nm

Chain Type Wedgegard Couplings are supplied bored and keywayed to customer requirements. Designs to suit special drive requirements are available. S Hub can be supplied complete with chain plate wheel, Vee or timing pulley. Application ...

Torque: 1,337 Nm - 1,155,465 Nm
Rotational speed: 900 rpm - 8,000 rpm

A range of robust gear couplings that can accommodate angular misalignment as well as accepting end float with high torque ratings. Available in single engagement type RGS and double engagement type RGD design, these couplings give maximum ...

Torque: 1,330 Nm - 391,500 Nm
Rotational speed: 1,450 rpm - 8,000 rpm

with double engagement gearing Features - High misalignment capability - Compensation of axial, radial and angular misalignments - Double engagement allows smooth torque transmission - Compact design due to inside turned hubs - ...

Torque: 1,330 Nm - 391,500 Nm
Rotational speed: 1,450 rpm - 8,000 rpm

with single engagement gearing Features - Compensation of axial and angular misalignments - Compact design due to inside turned hubs - High power to weight ratio Typical application - Roll drives in the steel ...

Torque: 10 Nm - 380 Nm
Rotational speed: 4,000 rpm - 14,000 rpm

with continuous sleeve, double engagement gearing Features - Compensation of axial, radial and angular misalignments - Double engagement allows smooth torque transmission - Deployable in horizontal and vertical applications - ...

Torque: 10 Nm - 380 Nm

Gear Couplings with continuous sleeve, double engagement gearing Features : - Compensation of axial, radial and angular misalignments - Double engagement allows smooth torque transmission - Deployable in horizontal and vertical ...

Torque: 96 Nm - 18,700 Nm
Rotational speed: 3,600 rpm - 7,500 rpm

Disc Couplings with double disc packs with spacer Features : - Nominal torques up to 13 300 Nm - Combines high torque capacity with low weight - Backlash free - Compensation of axial, radial and angular misalignments - Double ...

Torque: 580 Nm - 70,000 Nm

Cone Clamping Elements RLK 130 centres the hub to the shaft very high transmissible torque Features - Centres the shaft to the hub - Very high transmissible torques - For shaft diameters between 20 mm and 180 mm

Torque: 48 Nm - 36,450 Nm
Rotational speed: 1,500 rpm - 7,000 rpm

Hub-hub couplings with rubber elements for shaft-shaft coupling of both driving and driven machines by means of taper bushes already machined with cylindrical bore and keyway. Compared to the GC series, they offer the benefits of smaller ...

Torque: 48 Nm - 36,450 Nm
Rotational speed: 1,500 rpm - 7,000 rpm

Couplings with rubber elements to couple the flywheels of endothermic engines with the shafts of driven machines by means of a flange-hub connection with a taper bush already machined with a cylindrical bore and keyway. Always available ...

Torque: 48 Nm - 36,450 Nm
Rotational speed: 1,500 rpm - 7,000 rpm

Hub-hub couplings with rubber elements to couple both driving and driven machines with shaft ends. These couplings may be used to couple driving and driven machines, both with shaft ends. Also available in accordance with the ATEX directive. ...

Torque: 1.1 Nm - 65 Nm
Rotational speed: 9,000 rpm - 42,000 rpm

XG2 is a single piece construction coupling with the two aluminum hubs molded with high-gain rubber. It surpasses XGT-C XGL-C XGS-C in performance. The optimal damping and rigidity design enables realization of even greater servomotor ...

Torque: 1.1 Nm - 35 Nm

High-Gain Rubber Type Coupling XG 1. Reduction of Stabilization Time The improved limit gain of servomotors can reduce stabilization time. 2. Speed Unevenness Suppression Speed and torque unevenness arising from misalignment will ...

Torque: 0.6 Nm - 200 Nm
Rotational speed: 6,000 rpm - 42,000 rpm

XHW series is disk type flexible coupling. High-torque specification with rated torque 1.5 times higher than conventional products. This is the most appropriate for a servomotor with instantaneous max. torque of 350%. The stainless ...

Torque: 0.05 Nm - 10 Nm
Rotational speed: 0 rpm - 15,000 rpm

Miniature Metal Bellows Coupling with set screws  • Backlash-free miniature metal bellows coupling with radial set screws  • For shaft diameters from 1 – 24 mm  • High torsional stiffness, compensation of shaft misalignment ...

Torque: 0.1 Nm - 10 Nm
Rotational speed: 0 rpm - 15,000 rpm

Miniature Metal Bellows Coupling with collet clamps  • Backlash-free miniature metal bellows coupling with clamp hubs • For shaft diameters from 1 – 25mm • High torsional stiffness, compensation of shaft misalignment at ...

Torque: 18 Nm - 1,400 Nm

Metal Bellows Coupling with collet clamps  • Backlash-free metal bellows coupling with clamp hubs  • Hub material: up to 60Nm – aluminum, up from 80Nm - steel  • For shaft diameters from 10 – 80 mm  • High torsional ...

Type HRC flexible couplings are among the most robust available. They are chosen for the most common applications. Their machined diameter makes alignment quick and easy: just use a ruler to install them. HRC couplings are highly heat-resistant. Two ...

Torque: 10 Nm - 975 Nm

These elastomer star couplings are used on servo shafts to overcome critical vibrations and when all-steel couplings reach their limits. They transmit torque without backlash and compensate for misalignment. ACPG couplings now combine ...

Torque: 11.5 Nm - 420 Nm

Curved-tooth couplings function as flexible connections. They are particularly suitable for transmitting high torques. They compensate for axial, radial and angular misalignments of the shafts to be connected. Gear couplings can be mounted ...
