Custom torque motors

Power: 60 kW - 125 kW
Intensity: 3.8 A
Torque: 3 Nm

... actuator integrates a high-performance brushless DC motor, a self-developed planetary reducer, an encoder, and an integrated drive, enabling smooth operation with high torque. Utilizing a portable ...

Power: 66 W
Intensity: 4.8 A
Torque: 0.58 Nm

... • Lower cogging torque for easy control • High torque density and dynamics • High precision control with 0.01° • Frameless Inrunner Motor • BLDC Motor • Flexible Adaptation to Various ...

Power: 297 W
Intensity: 7.28 A
Torque: 1.2 Nm

... Inrunner Torque Motor • High Temperature Resistant • High Fill Factor for Efficiency and Stability • Equipped with Hall Sensors • Ideal for Joint of Robotic Arms and Robots CubeMars introduces the RI-PH ...

Power: 637 W
Intensity: 16 A
Torque: 2 Nm

... Inrunner Torque Motor • High Temperature Resistant • High Fill Factor for Efficiency and Stability • Equipped with Hall Sensors • Ideal for Joint of Robotic Arms and Robots CubeMars introduces the RI-PH ...

Power: 823 W
Intensity: 20 A
Torque: 5.5 Nm

... Inrunner Torque Motor • High Temperature Resistant • High Fill Factor for Efficiency and Stability • Equipped with Hall Sensors • Ideal for Joint of Robotic Arms and Robots CubeMars introduces the RI-PH ...

Power: 837 W
Torque: 4 Nm
Rotational speed: 2,000 rpm

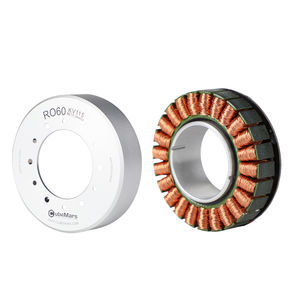

... limited internal installation space within joints and increased torque requirements. Product Features: 1. Ultra-Low Cogging Torque: The RO series motor exhibits 50% lower tooth count torque ...

Power: 490 W
Intensity: 15 A
Torque: 1.3 Nm

... limited internal installation space within joints and increased torque requirements. Product Features: 1. Ultra-Low Cogging Torque: The RO series motor exhibits 50% lower tooth count torque ...

Power: 351 W
Intensity: 8.5 A
Torque: 0.8 Nm

... limited internal installation space within joints and increased torque requirements. Product Features: 1. Ultra-Low Cogging Torque: The RO series motor exhibits 50% lower tooth count torque ...

Power: 432 W - 1,344 W
Intensity: 9 A - 28 A
Torque: 0.75 Nm

... 48V Exoskeleton Robot Motor with Hall Sensor-KV115 • Integrated with hall sensors, E-deg120±20° • Special heat dissipation design • Low cogging torque&rotor inertia • Max torque 2.3Nm CubeMars ...

Power: 0.1 kW - 5 kW

... power-and-signal shared input/output design, greatly simplifying the connection between drive units. Combined with a hollow-through wiring structure, the application and integration of the drive units become more convenient ...

Power: 0.21 kW - 1.61 kW
Intensity: 4.4 A - 36.9 A
Torque: 0.36 Nm - 6.4 Nm

... strong>Introduction
HONPINE FM2 frameless torque motors for robotics deliver improved performance and more configuration options versus the FM1 series. Motor losses are reduced by ~20% and ...

Power: 0.1 kW - 1.6 kW
Intensity: 2.55 A - 35.5 A
Torque: 0.32 Nm - 6.37 Nm

... Introduction
The internal rotor frameless torque motor is a specialized type of permanent magnet synchronous motor (PMSM) composed of two core components: the rotor and stator. The rotor is ...

Torque: 0.01 Nm - 4 Nm
Rotational speed: 130 rpm - 18,057 rpm
Operating temperature: -20 °C - 80 °C

... nominal voltage, nominal current, nominal torque, nominal speed, max speed, stall torque, stall current, winding turns, phase resistance, phase inductance, speed constant, torque constant, rotor inertia, ...

Power: 0.03 W
Intensity: 1.7 A - 5.9 A
Torque: 0.25 Nm - 3.5 Nm

... -NH-A-T DD torque motor is a high-precision, low-speed direct-drive DC torque motor engineered for industrial motion control. The unit has an 80 mm diameter, 67 mm height ...

Power: 220 W
Intensity: 2 A - 6 A
Torque: 6 Nm - 18 Nm

... Introduction
The TDB-170-050-NH-A is a low-speed, high- torque DC torque motor designed for precision automation and direct-drive CNC applications. It provides precise ...

Power: 110 W
Intensity: 2.5 A - 7.5 A
Torque: 3 Nm - 9 Nm

... 065-NH-A direct-drive motor is composed of four main elements: stator, rotor, bearings and encoder. The unit measures 112 mm in diameter, 65 mm in height and weighs 2.8 kg. It provides a continuous torque of 3 N·m and ...

Power: 400 W
Intensity: 2.5 A - 7.5 A
Torque: 20 Nm - 65 Nm

... strong>
Performance | Unit | Performance | Unit
Continuous Torque: 20 N·m | Peak Torque: 65 N·m
Continuous Current: 2.5 Arms | Peak Current: 7.5 Arms
Rated Power: 398 W | Torque Constant: ...

Power: 630 W
Intensity: 2.5 A - 7.5 A
Torque: 18 Nm - 60 Nm

... Introduction
The TDB-170-125-NH-B direct drive DD torque motor combines an outer-rotor architecture with stable control characteristics, making it suitable for CNC rotary tables, semiconductor equipment, ...

Power: 1.49 kW
Intensity: 7.1 A - 14.2 A
Torque: 95 Nm - 190 Nm

... large direct-drive torque motor designed for heavy-duty automation and precision manufacturing. Its outer-rotor architecture, Hall-sensor-free topology and high-resolution incremental encoder enable accurate positioning, ...
