Synchronous torque motor CWFL series

3-phase48 Vpermanent magnet

Overview

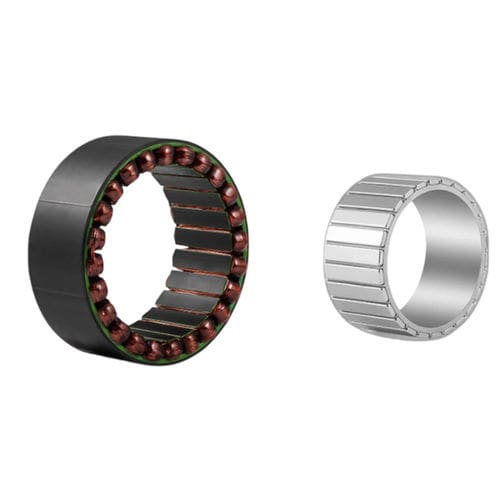

The CWFL13226-35030NW48-S000 is the largest model in the CWFL series — a φ132 mm frameless torque motor kit delivering 3.50 N·m rated torque and 10.50 N·m peak torque at 3000 RPM on 48 VDC. The 16-pole 3-phase PMSM design provides very high torque output for demanding direct-drive applications including industrial robot base joints, heavy-duty rotary tables, and large underwater thrusters.

Key Highlights

• φ132 mm stator OD — largest in the CWFL series for maximum torque
• 3.50 N·m rated / 10.50 N·m peak torque at 3000 RPM on 48 VDC
• 16-pole 3-phase PMSM with sinusoidal back-EMF for smooth FOC control
• Class F insulation (155 °C); optional Hall sensor + temperature sensor
• Custom stator stack, bore ID, and winding — no MOQ

Quick Specs
Rated Voltage | 48 VDC
Rated Torque | 3.50 N·m
Peak Torque | 10.50 N·m
Rated Speed | 3000 RPM
Rated Power | 1099 W
Stator OD | φ132 mm

Electrical Specifications (48 VDC)
Parameter | Value
Model | CWFL13226-35030NW48-S000
Rated Voltage | 48 VDC
Rated Current | 32.9 A
Peak Current (Instantaneous) | 98.7 A
Rated Output Power | 1099 W
Rated Speed | 3000 RPM
Rated Torque | 3.50 N·m
Peak Torque (Instantaneous) | 10.50 N·m
Back-EMF Constant (Ke) | 7.4 Vrms/krpm
Torque Constant (Kt) | 0.1064 N·m/A
Rotor Inertia | 5.18 × 10⁻⁴ kg·m²
Poles | 16
Insulation Class | F (155 °C)
Weight | 2.1 kg
Operating Environment | −20 °C to +40 °C; Humidity ≤ 90% RH

Dimensional Parameters
Parameter | Value
Ls (Stator Stack Length) | 25.9 mm
Lr (Rotor Length) | 28.9 mm
ØD (Stator OD) | 132 mm
Ød (Bore ID, H7) | 57 mm
ØA min | 81 mm
ØB max | 124.8 mm
ØC max (both ends) | 129 mm
E max | 8 mm
F max | 12 mm

Wiring & Sensor Options
Parameter | Value
Power Leads | 3 wires (U/V/W), L = 200 mm, TEFLON insulation; U — Red, V — White, W — Black
Hall Sensor (optional) | 5 wires: Vcc, GND, HA (Green), HB (Blue), HC (White) — L = 200 mm, TEFLON
Temperature Sensor (optional) | 2 wires: + (Orange), − (Yellow) — L = 200 mm, TEFLON
Bearing | Not included — host structure provides bearing

Available Voltage Configurations
48 VDC | CWFL13226-35030NW48-S000: 32.9 A rated, 98.7 A peak, Ke = 7.4 Vrms/krpm, Kt = 0.1064 N·m/A
60 VDC | CWFL13226-35030NW60-S000: winding parameters not listed
72 VDC | CWFL13226-35030NW72-S000: winding parameters not listed
Custom | Stack thickness, bore ID, winding, sensor type — parameters configurable (not listed)

Dimensional Drawing & Performance Charts
Dimensional drawing and torque-speed characteristic charts are provided as product images for mechanical integration and performance evaluation (images and charts show layout, mounting dimensions, and torque-speed curves).

Technical specifications

• Series: CWFL φ132 mm
• Model (example listing): CWFL13226-35030NW48-S000
• Rated Voltage: 48 VDC
• Rated Torque: 3.50 N·m
• Peak Torque: 10.50 N·m
• Rated Speed: 3000 RPM
• Rated Output Power: 1099 W
• Back-EMF Constant (Ke): 7.4 Vrms/krpm
• Torque Constant (Kt): 0.1064 N·m/A
• Poles: 16
• Rotor Inertia: 5.18 × 10⁻⁴ kg·m²
• Insulation Class: F (155 °C)
• Weight: 2.1 kg
• Stator OD: φ132 mm
• Bore ID (H7): 57 mm
• Operating Environment: −20 °C to +40 °C; Humidity ≤ 90% RH
• Wiring: 3 power leads (U/V/W) TEFLON; optional Hall and temperature sensors
