Synchronous torque motor CWFL03820-01430NW48-S000

three-phase48 Vpermanent magnet

Product Overview

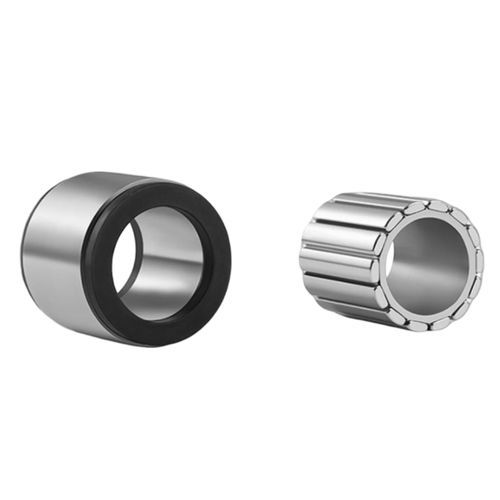

The CWFL03820-01430NW48-S000 is a compact φ37.5 mm frameless torque motor kit supplied as separate stator and rotor for direct integration into the host structure. Designed for space-efficient direct-drive applications, it provides a rated torque of 0.14 N·m and a peak torque of 0.42 N·m at up to 3000 RPM on a 48 VDC supply. The 8-pole, 3-phase PMSM with sinusoidal back-EMF is optimised for FOC servo control. Class F insulation (155 °C) supports operation in demanding industrial environments such as collaborative-robot joints, gimbal actuators, and precision rotary tables.

Key Highlights

• Frameless kit: stator + rotor for direct host-structure mounting
• φ37.5 mm stator OD — smallest in the CWFL series for compact joint designs
• Rated torque 0.14 N·m / peak torque 0.42 N·m at 3000 RPM (48 VDC)
• 8-pole, 3-phase PMSM with sinusoidal back-EMF for smooth FOC control
• Class F insulation (155 °C); optional Hall and temperature sensors
• Customisable stator stack length, bore diameter and winding; no MOQ

Quick Specs
Model: CWFL03820-01430NW48-S000
Rated Voltage: 48 VDC
Rated Torque: 0.14 N·m
Peak Torque: 0.42 N·m
Rated Speed: 3000 RPM
Rated Power: 44 W
Stator OD: φ37.5 mm
Weight: 0.13 kg

Electrical Specifications (48 VDC)
Rated Voltage: 48 VDC
Rated Current: 1.4 A
Peak Current (instantaneous): 4.2 A
Rated Output Power: 44 W
Back-EMF (Ke): 7 Vrms/krpm
Torque Constant (Kt): 0.1007 N·m/A
Poles: 8
Rotor Inertia: 2.57 × 10⁻⁶ kg·m²
Insulation Class: F (155 °C)

Dimensional Parameters
Stator stack length (Ls): 19.6 mm
Rotor length (Lr): 22.6 mm
Stator OD (ØD): 37.5 mm
Bore ID (Ød, H7): 12 mm
ØA min: 23.6 mm
ØB max: 34.5 mm
ØC max (both ends): 36.5 mm
E max: 5.5 mm
F max: 9.5 mm

Wiring & Sensor Options
Power leads: 3 wires (U/V/W), L = 200 mm, TEFLON; U — Red, V — White, W — Black
Hall sensor (optional): 5 wires — Vcc, GND, HA (Green), HB (Blue), HC (White); L = 200 mm, TEFLON
Temperature sensor (optional): 2 wires — + (Orange), − (Yellow); L = 200 mm, TEFLON
Bearing: not included — host structure provides bearing

Available Voltage Configurations
12 VDC: CWFL03820-01430NW12-S000 — Rated 5.1 A, Peak 15.4 A, Ke = 1.9 Vrms/krpm, Kt = 0.0273 N·m/A
24 VDC: CWFL03820-01430NW24-S000 — Rated 2.7 A, Peak 8.1 A, Ke = 3.6 Vrms/krpm, Kt = 0.0518 N·m/A
48 VDC: CWFL03820-01430NW48-S000 — Rated 1.4 A, Peak 4.2 A, Ke = 7 Vrms/krpm, Kt = 0.1007 N·m/A
Custom: stack thickness, bore ID, winding, sensor type configurable on request

Figures
Dimensional drawing and torque-speed characteristic figures provided with the product images.

Technical Specifications

• Series: CWFL φ37.5 mm
• Model: CWFL03820-01430NW48-S000
• Rated Voltage: 48 VDC
• Rated Torque: 0.14 N·m
• Peak Torque: 0.42 N·m
• Rated Speed: 3000 RPM
• Rated Power: 44 W
• Rated Current: 1.4 A; Peak Current: 4.2 A
• Ke: 7 Vrms/krpm; Kt: 0.1007 N·m/A
• Poles: 8; Rotor Inertia: 2.57 × 10⁻⁶ kg·m²
• Insulation Class: F (155 °C)
• Stator OD: 37.5 mm; Bore ID (H7): 12 mm
• Weight: 0.13 kg
• Operating range: −20 °C to +40 °C; Humidity ≤ 90% RH
• Optional sensors: Hall (5-wire), Temperature (2-wire)
