3-phase torque motor CWFL08813-11030NW48-S000

brushlesssynchronous48 V

Product summary

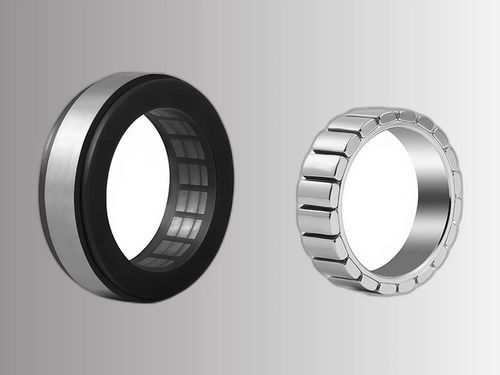

The CWFL08813-11030NW48-S000 is a φ88 mm A-series frameless torque motor kit that pairs a slim 13 mm stator stack with a large 41 mm bore ID, allowing cables, coolant lines, or optical paths to pass cleanly through the joint centre. The 16-pole 3-phase PMSM delivers 1.10 N·m rated / 3.30 N·m peak torque at 3000 RPM on 48 VDC with ultra-smooth low-speed torque, suitable for collaborative robot elbow and shoulder joints, hollow-shaft direct-drive rotary tables, and compact medical imaging gantries where axial compactness and central routing are required.

KEY HIGHLIGHTS

• φ88 mm stator OD, 13 mm slim stack (A-series) for axially constrained designs
• 1.10 N·m rated / 3.30 N·m peak torque at 3000 RPM on 48 VDC
• 16-pole 3-phase PMSM for ultra-smooth low-speed operation
• Class F insulation (155 °C); optional Hall sensor + temperature sensor
• Custom stator stack, bore ID, and winding — no MOQ

Quick specs
Rated Voltage — 48 VDC
Rated Torque — 1.10 N·m
Peak Torque — 3.30 N·m
Rated Speed — 3000 RPM
Rated Power — 346 W
Stator OD — φ88 mm

Electrical Specifications (48 VDC)
Model — CWFL08813-11030NW48-S000
Rated Voltage — 48 VDC
Rated Current — 10.3 A
Peak Current (Instantaneous) — 31.0 A
Rated Output Power — 346 W
Rated Speed — 3000 RPM
Rated Torque — 1.10 N·m
Peak Torque (Instantaneous) — 3.30 N·m
Back-EMF Constant (Ke) — 7.4 Vrms/krpm
Torque Constant (Kt) — 0.1064 N·m/A
Rotor Inertia — 6.48 × 10⁻⁵ kg·m²
Poles — 16
Insulation Class — F (155 °C)
Weight — 0.5 kg
Operating Environment — −20 °C to +40 °C; Humidity ≤ 90% RH

Dimensional Parameters
Ls (Stator Stack Length) — 13.3 mm
Lr (Rotor Length) — 16.3 mm
ØD (Stator OD) — 88 mm
Ød (Bore ID, H7) — 41 mm
ØA min — 57.4 mm
ØB max — 83.3 mm
ØC max (both ends) — 86 mm
E max — 6.3 mm
F max — 10.3 mm

Wiring & Sensor Options
Power Leads — 3 wires (U/V/W), L = 200 mm, TEFLON insulation; U — Red, V — White, W — Black
Hall Sensor (optional) — 5 wires: Vcc, GND, HA (Green), HB (Blue), HC (White) — L = 200 mm, TEFLON
Temperature Sensor (optional) — 2 wires: + (Orange), − (Yellow) — L = 200 mm, TEFLON
Bearing — Not included — host structure provides bearing

Available Voltage Configurations
24 VDC — 24 V variant available (winding parameters not listed)
36 VDC — 36 V variant available (winding parameters not listed)
48 VDC — CWFL08813-11030NW48-S000: 10.3 A rated, 31.0 A peak, Ke = 7.4 Vrms/krpm, Kt = 0.1064 N·m/A
Custom — Stack thickness, bore ID, winding, sensor type configurable; parameters not listed

Technical specifications

• Series: CWFL φ88mm-A (Slim Stack)
• Model code (product page): CWFL08813-11030NW48-S000
• Stator OD: 88 mm
• Bore ID (H7): 41 mm
• Stator stack length: 13.3 mm
• Rated torque: 1.10 N·m
• Peak torque: 3.30 N·m
• Rated speed: 3000 RPM
• Rated power: 346 W
• Rated current: 10.3 A; Peak current: 31.0 A
• Back-EMF (Ke): 7.4 Vrms/krpm; Torque constant (Kt): 0.1064 N·m/A
• Poles: 16 (16-pole 3-phase PMSM)
• Insulation class: F (155 °C)
• Rotor inertia: 6.48 × 10⁻⁵ kg·m²
• Weight: 0.5 kg
• Operating environment: −20 °C to +40 °C; Humidity ≤ 90% RH
• Wiring: 3-phase power leads U/V/W (TEFLON), optional Hall and temperature sensors (TEFLON)
