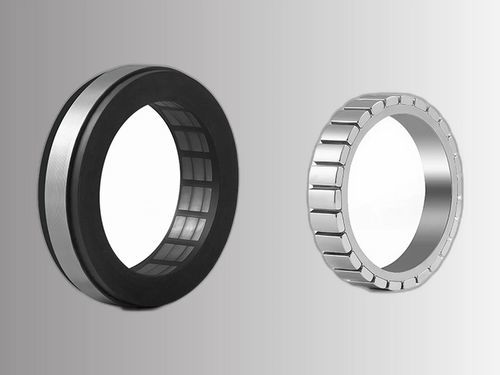

Synchronous torque motor CWFL10441-40030NW48-S000

three-phase48 Vpermanent magnet

Product Overview
The CWFL10441-40030NW48-S000 is a φ104 mm B-series frameless torque motor kit delivering 4.00 N·m rated torque and 12.00 N·m peak torque at 3000 RPM on 48 VDC. The 10-pole 3-phase PMSM design provides very high torque output for demanding direct-drive applications including industrial robot base joints, heavy-duty rotary tables, and large underwater thrusters.

Key Highlights

• φ104 mm stator OD, 41 mm stack (B-series) for very high torque output
• 4.00 N·m rated / 12.00 N·m peak torque at 3000 RPM on 48 VDC
• 10-pole 3-phase PMSM with sinusoidal back-EMF for smooth FOC control
• Class F insulation (155 °C); optional Hall sensor + temperature sensor
• Custom stator stack, bore ID, and winding — no MOQ

Electrical Specifications (48 VDC)
Model: CWFL10441-40030NW48-S000
Rated Voltage: 48 VDC
Rated Current: 35.7 A
Peak Current (Instantaneous): 107 A
Rated Output Power: 1257 W
Rated Speed: 3000 RPM
Rated Torque: 4.00 N·m
Peak Torque (Instantaneous): 12.00 N·m
Back-EMF Constant (Ke): 7.8 Vrms/krpm
Torque Constant (Kt): 0.1122 N·m/A
Rotor Inertia: 2.15 × 10⁻⁴ kg·m²
Poles: 10
Insulation Class: F (155 °C)
Weight: 1.95 kg
Operating Environment: −20 °C to +40 °C; Humidity ≤ 90% RH

Dimensional Parameters
Ls (Stator Stack Length): 40.6 mm
Lr (Rotor Length): 43.6 mm
ØD (Stator OD): 104 mm
Ød (Bore ID, H7): 41 mm
ØA min: 59.4 mm
ØB max: 96.5 mm
ØC max (both ends): 101 mm
E max: 8 mm
F max: 12 mm

Wiring & Sensor Options
Power Leads: 3 wires (U/V/W), L = 200 mm, TEFLON insulation; U — Red, V — White, W — Black
Hall Sensor (optional): 5 wires: Vcc, GND, HA (Green), HB (Blue), HC (White) — L = 200 mm, TEFLON
Temperature Sensor (optional): 2 wires: + (Orange), − (Yellow) — L = 200 mm, TEFLON
Bearing: Not included — host structure provides bearing

Available Voltage Configurations
48 VDC: CWFL10441-40030NW48-S000 — 35.7 A rated, 107 A peak, Ke = 7.8 Vrms/krpm, Kt = 0.1122 N·m/A
60 VDC: CWFL10441-40030NW60-S000 — winding parameters not listed on page
72 VDC: CWFL10441-40030NW72-S000 — winding parameters not listed on page
Custom: Stack thickness, bore ID, winding, sensor type — customizable; parameters not listed on page

Additional Product Media
Dimensional drawing and torque-speed characteristic images are provided on the product page.

Technical Specifications

• Series: CWFL φ104mm-B (Long Stack)
• Model (page reference): CWFL10441-40030NW48-S000
• Rated Voltage: 48 VDC
• Rated Torque: 4.00 N·m
• Peak Torque: 12.00 N·m
• Rated Speed: 3000 RPM
• Rated Power: 1257 W
• Stator OD: φ104 mm
• Stator Stack Length (Ls): 40.6 mm
• Bore ID (Ød, H7): 41 mm
• Rated Current: 35.7 A; Peak Current: 107 A
• Back-EMF Constant (Ke): 7.8 Vrms/krpm; Torque Constant (Kt): 0.1122 N·m/A
• Poles: 10
• Rotor Inertia: 2.15 × 10⁻⁴ kg·m²
• Insulation Class: F (155 °C)
• Weight: 1.95 kg
• Operating Temp/Humidity: −20 °C to +40 °C; ≤ 90% RH
• Power leads: U/V/W, TEFLON, 200 mm
• Optional sensors: Hall (5-wire) and temperature sensor (2-wire)
• Bearing: not included
