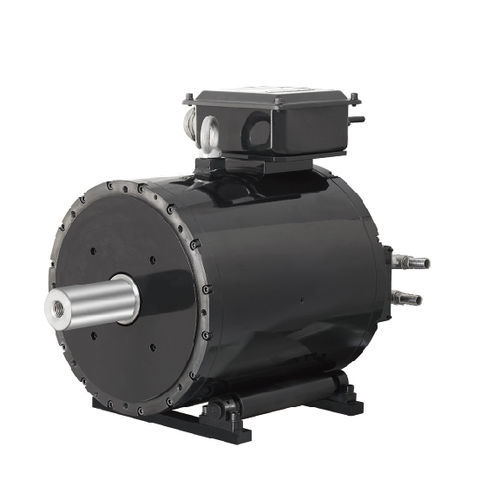

Three-phase torque motor EMT2

synchronous400 Vpermanent magnet

Différent from the concept of traditional power frequency torque motor, direct drive torque motor refers to a synchronous motor with a torque ranging from hundreds to thousands to tens of thousands of nm, which can output power at a low speed of tens to hundreds of révolutions. At present, the général form is a three-phase permanent magnet synchronous motor with feedback components, which is used with servo drivers. This kind of motor is usually directly connected with the load, which eliminates the transmission devices such as réduction gears, and can realize high rigid and efficient connection without wear and back clearance. Direct drive torque motor has the functions of low speed, high torque, continuous adjustable speed, speed, torque, position control, etc. The selection is based on the rated torque and maximum torque of the motor, without considering the power. I Simulation design using finite element analysis (FEA) software. I Optimize electromagnetic, thermal and structural per- formance parameters. I The overload multiple is 2.25 ~ 2.25 times. I Hollow shaft design, low moment of inertia. I Water cooling design, improve power density. I Installation methods include flange installation and base installation. I Output forms include extended solid shaft, hollow shaft and a variety of key connections. I Optional thrust bearing. I Customized according to user needs. EXAMPLE OF USE: I Extruder main drive I Worm drive of die casting machine I Film drawing machine traction roll drive I Elastic roll, calender roll, press grinding roll and cooling roll I Dynamic positioning processing, such as rotary table, timing conveyor belt I Alternative hydraulic motor
