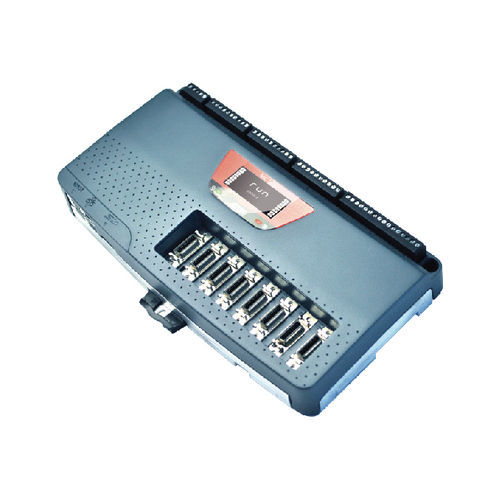

5-axis motion controller TRIO MC508

analogCANopenEthernet

MC508 is a high spécification motion controller, which adopts arm cortex a9800mhz processor, has 8 voltage outputs and 8 flexible shaft interfaces, and can be configured as many as 16 puise direction output shafts or 8 closed-loop servo shafts. PRODUCT INTRODUCTION: MC508 has two différent axis configurations. Both configuration modes support 32 software axes. Any axis not assigned to the built-in hardware can be used as a Virtual axis. Each axis can realize various movements through programming, such as linear, arc, spiral and spatial arc interpolation, electronic cam, master-slave movement and electronic gear movement. The mc508 has 128MB of memory, of which 32MB is used for user programs and user table space memory. The flexible MDR connector supports a single cable connection between the MC508 controller and the driver. The shaft interface can be configured as feedback device or puise output through software. When it is puise output, the shaft interface can be used to control stepping or servo drive, or analog encoder output. When configured as feedback, the shaft interface supports incrémental encoder input, or one of the four commonly used absolute value encoders SSI, tamakawa, BISS and EnDat. Any feedback shaft with a voltage output can be used to form a closed-loop servo. The built-in Ethernet port can be connected to PC programming and downloading programs or général HMI and PLC. Based on the powerful motion perfect V4 application development software, the user program can be written in triobasic language with multi task characteristics, making the complex motion simple. At the same time,
