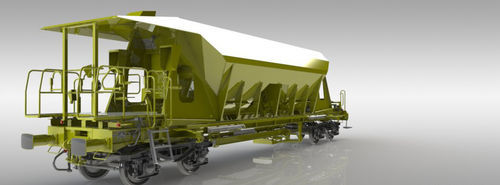

車輪付き運搬機 Faccns (Xans)
電動式

車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 2
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 3
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 4
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 5
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 6
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 7
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 8
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 9
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 10
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 11
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 12
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 13
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 14
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 15
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 16
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 17
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 18
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 19
車輪付き運搬機 - Faccns (Xans) - Greenbrier Europe - 電動式 - 画像 - 20
お気に入りに追加する
商品比較に追加する

特徴

駆動
車輪付き
エンジンタイプ
電動式
積載量

63.8 t
(70.3 us ton)

詳細

特長
  • この自動排出式ホッパ車は、線路保守で使用する骨材の輸送および排出に適しています。
  • 排出は電動式の振動側溝とコンベヤで行われます。
  • 排出には外部電源が必要です(電源車または電力網から供給)。
  • 車両設計はTSI、EN、UICの要件に適合しています。


機能
  • 車両の両側からの排出が可能です。
  • 排出範囲は車軸から1.3~4.5 m(またはレール間)です。


パラメータ(表)
Axle load - 22.5 t / axle
Track gauge - 1,435 mm
Loading gauge - G1-TSI
Brake regime - ”S”
Brake type - GP-A
Max. speed at 90,0 t - 100 km/h
Max. speed (unloaded) - 120 km/h
Climate condition - T1
Rmin - 35.0 m
Length over buffers - 15,000 mm
Tare weight - ~ 26.2 t
Payload - ~ 63.8 t
Loading volume - 40.0 m3
Loading opening - 9,200 x 1,500 mm
Unloading opening - 2 x 1,900 x 1,000 mm
Number of sections - 2
Discharging time - ~ 8 min.
Material of box - Carbon steel
Bogie type - Y25Lsdi(f)
Power supply - 3 x 400 V / 16 kVA

技術仕様
  • Axle load: 22.5 t / axle
  • Track gauge: 1,435 mm
  • Loading gauge: G1-TSI
  • Brake regime: ”S”
  • Brake type: GP-A
  • Maximum speed at 90.0 t: 100 km/h
  • Maximum speed (unloaded): 120 km/h
  • Climate condition: T1
  • Minimum curve radius (Rmin): 35.0 m
  • Length over buffers: 15,000 mm
  • Tare weight: approximately 26.2 t
  • Payload: approximately 63.8 t
  • Loading volume: 40.0 m3
  • Loading opening: 9,200 x 1,500 mm
  • Unloading opening: 2 x 1,900 x 1,000 mm
  • Number of sections: 2
  • Discharging time: approximately 8 minutes
  • Box material: Carbon steel
  • Bogie type: Y25Lsdi(f)
  • Power supply: 3 x 400 V / 16 kVA
