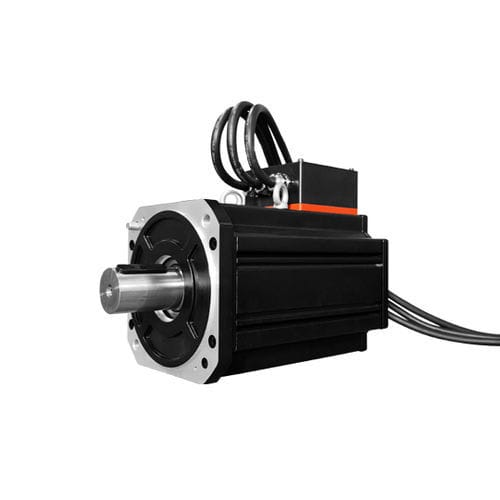

ブラシレスサーボモーター M220AIS seriesDC96 VIP65
お気に入りに追加する
商品比較に追加する
特徴
- タイプ
- DC, ブラシレス
- 電圧
- 96 V
- IPコード
- IP65
- 極数
- 5極
- その他の特徴
- 閉ループ
- 出力
11 kW, 15 kW, 20 kW
(14.96 hp, 20.39 hp, 27.19 hp)- アンペア数
152 A, 178 A, 236 A
- 回転速度
1,500 rpm
(9,424.778 rad.min-1)- 直径
315.5 mm, 363.5 mm, 473 mm
(12.42 in, 14.31 in, 18.62 in)
詳細
Technical ParametersTechnical SpecificationsModelVoltage (VAC)Current (A)Torque (Nm)Weight (kg)Motor Length (mm)M220AIS315 – 96 – C070015 – 5 – B19615270315.5M220AIS363 – 96 – C095515 – 5 – B19617895.5363.5M220AIS473 – 96 – C236015 – 5 – B196236127473Motor ModelM220AIS315 – 96 – C070015 – 5 – B1M220AIS363 – 96 – C095515 – 5 – B1M220AIS473 – 96 – C236015 – 5 – B1Motor Dimensions (mm)315.5±2363.5±2473±2Encoder ModelSRMA46 – M16S17BIT – SYH – C – 5VSRMA46 – M16S17BIT – SYH – C – 5VSRMA46 – M16S17BIT – SYH – C – 5VRated Power (kW)111520Rated Voltage (V)96VDC96VDC96VDCRated Current (A)152178236Rated Speed (rpm)150015001500Rated Torque (Nm)7095.5127Peak Torque (Nm)140191254Back EMF (V/krpm)28.4±10%32.8±10%33±10%Torque Constant (Nm/A)0.470.550.55Winding Resistance (Ω)5.3±10%5.3±10%TBD±10%Line Inductance (mH)0.093±20%0.093±20%TBD±20%Electrical Constant (MS)1717TBDWiring MethodYYYInsulation ClassFFFProtection ClassIP65 (except shaft and terminal box)IP65 (except shaft and terminal box)IP65 (except shaft and terminal box)Number of Pole Pairs555Category: 220 Series DC Servo Motor and DriverTags: BLDC Motor, Brushless Motor, Closed Loop Stepper Motor, DC Servo Motor, Motor Driver, Servo Motor and Driver, Stepper MotorKey Features / Technical Specifications:Model: M220AIS315, M220AIS363, M220AIS473Rated Voltage: 96VDCRated Power: 11kW, 15kW, 20kWRated Current: 152A, 178A, 236ARated Speed: 1500rpmRated Torque: 70Nm, 95.5Nm, 127NmPeak Torque: 140Nm, 191Nm, 254NmEncoder Model: SRMA46 – M16S17BIT – SYH – C – 5VInsulation Class: FProtection Class: IP65 (except shaft and terminal box)Number of Pole Pairs: 5Wiring Method: Y
