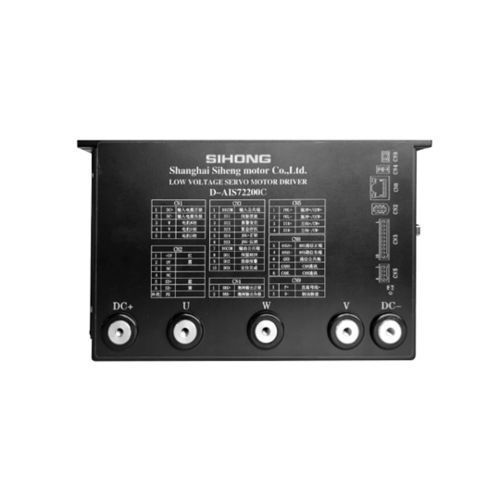

DCサーボドライブ D – AIS72200A

RS-485Modbus制御用

Product DetailsFeatures strong stability, high-precision positioning, high motor responsiveness, low noise, low heat generation, well-structured design, strong overload capacity, practical and rich functions, simple and convenient application. Equipped with protection functions against over-voltage, under-voltage, overspeed, over-current, overload, encoder abnormality, position deviation, stall, parameter abnormality, etc.Technical SpecificationsDrive ModelVoltage Range (V)Rated Current (A)D – AIS24008A24 – 368D – AIS48015A24 – 4815D – AIS48025A24 – 6025D – AIS48050A24 – 7250D – AIS48100A36 – 72100D – AIS72200A48 – 96200D – AIS72300A48 – 96300Control Methods① Position control ② Speed control ③ Torque control ④ Communication controlControl CharacteristicsSpeed frequency response: ≥200Hz, received pulse frequency ≤200kHz, speed fluctuation rate: < ±0.03 (load 0 – 100%): < ±0.02×(0.9 – 1.1) power supply voltageMonitoring FunctionsCurrent speed, DI input, DO output, current position, command input pulse integration, average load rate, position deviation count, motor phase current, bus voltage value, module temperature, alarm record, command pulse frequency corresponding speed, operating status, etc.Home Return Function13 autonomous types (search) home mode return, and home point offset functionRS485 FunctionComplies with standard Modbus-RTU protocol, one-to-one and simple networking and parallel connection communication interfaceDriver Mounting DimensionsProduct Model: D – AIS72200ARated Voltage: 48 – 96VRated Current: 200ASplit-type Drive Hardware InterfaceApplicable drive models: D – AISXX005A / D – AISXX0015A / D – AISXX0025A / D – AISXX0040A / D – AISXX00100A / D – AISXX00200ASplit-type AI MOTOR Drive Interface Diagram(See product page for detailed pinout tables and wiring diagrams)Split-type Discharge Braking Resistor Selection Specification Table – Type Drive Cn9 InterfaceSplit-type Drive ModelRated Output CurrentExternal Braking Resistor Resistance RequirementExternal Braking Resistor Power RequirementD – AISXX008A8A10Ω – 30Ω≥100WD – AISXX0015A15A10Ω – 30Ω≥100WD – AISXX0025A25A10Ω – 30Ω≥100WD – AISXX0050A50A5Ω – 15Ω≥200WD – AISXX00100A100A5Ω – 15Ω≥200WD – AISXX00200A200A5Ω – 15Ω≥200WStandard Wiring DiagramsIncludes input power wiring, high-speed pulse signal wiring, DI and DO wiring, RS485 communication wiring, and host computer debugging connection. (See product page for detailed diagrams and notes.)Key NotesInput power terminals must strictly distinguish between positive and negative poles.Product has certain overload capacity; when selecting an external switching power supply, output capacity should be 1.5 to 2 times the product's rated current.Supports a wide voltage range for pulse input: 5 – 24V, max received pulse frequency 200kHz.DI/DO terminals can be freely assigned different functions, but the same function cannot be assigned to multiple DIs.RS485 communication supports multi-slave connection with recommended 120Ω termination resistor for noise reduction.Technical Features / SpecificationsModel: D – AIS72200AVoltage Range: 48 – 96VRated Current: 200AControl Modes: Position, Speed, Torque, CommunicationRS485 Modbus-RTU supportMultiple protection and monitoring functionsSplit-type hardware interface for flexible integration
