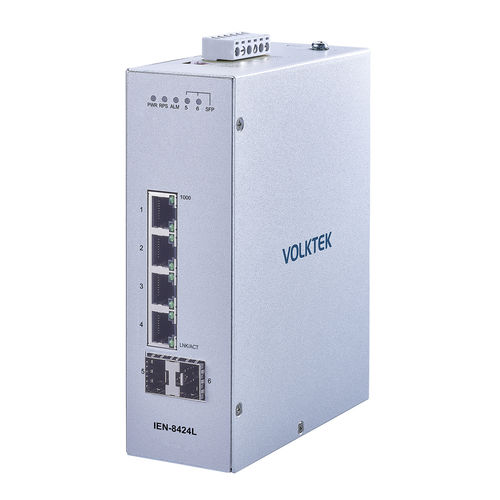

管理型イーサネットスイッチ IEN-8424L

4 ポートDINレールDIP

Product Features4 x 10/100/1000 RJ45 ports and 2 x FX/GbE SFP uplink ports (for long-distance connection to control center and cascading)Enhanced security with port authenticationOptimized network performance and sufficient bandwidth using flow control and QoS3-step installation wizard completed in 3 minutesOperating temperature range: -10°C to 60°C (14°F to 140°F), metal housingProduct OverviewThe IEN-8424L is a lite managed industrial switch with 4-port 10/100/1000 RJ45 downlinks and 2-port FX/GbE multi-rate SFP uplinks, designed for communication between controllers and devices in real-time monitoring and automation settings. This switch is used with industrial devices such as PLCs, HMIs, and legacy devices. It provides auto-negotiation on all ports and easily aggregates devices in industrial Ethernet applications using Modbus TCP.Equipped with various management tools for configuration, technicians can learn to use this device in just 3 hours. The wizard shortens installation to 3 steps and 3 minutes. The monitoring and management platform, topology map, and dashboard provide real-time useful information, helping users diagnose the network and troubleshoot without always having a technician on-site. Rate limiting and QoS (Quality of Service) enable network optimization.This switch is built with industrial-grade components and enclosed in a metal case to protect devices from tools and hazards. It is designed to withstand vibration, shock, free fall, and temperatures from -10°C to 60°C (14°F to 140°F), making it suitable for harsh application environments without air conditioning. For reliability, redundant power and terminal block alarm relay contacts ensure continuous operation and issue alerts in case of power failure.FeaturesLAMUNGAN - Monitoring and Management PlatformLamungan is Volktek's embedded monitoring and management platform, offering a user-friendly interface with a wizard, topology map, and dashboard, enabling users to achieve more in less time by saving resources and improving efficiency. It integrates four tools for device deployment and installation, network performance, device monitoring, and network configuration.Wizard - 3-Step Installation in 3 MinutesWhen a new switch is connected, the wizard helps technicians set up network access, security, and login information. This allows for quick installation of all devices and remote configuration after network connection is established. For users unfamiliar with such devices, the wizard can solve many issues.Topology Map - Smart and Interactive Network OverviewTo facilitate problem discovery and troubleshooting, a bird's-eye view of the network provides OT and IT users with a comprehensive understanding. The Ethernet switch uses smart technology to discover third-party devices, their interfaces, and link path statuses with a three-color code (green, amber, red). Users can also customize the map with icons and background images.Dashboard - Visualization of Network PerformanceThe dashboard visualizes the switch's CPU performance and data transmission speed in a simple interface, enabling quick detection of device or network issues and providing rapid assistance.Third-Party Device Compatibility and Speed AdaptabilityThe device's multi-rate ports can transmit data at different Ethernet speeds: 10/100/1000 Mbps on copper and 100/1000 Mbps on fiber, adapting to third-party device requirements. When legacy devices are connected, auto-negotiation reduces the need for additional adapters in budget-constrained scenarios.Optimized Network PerformanceData transmission to the control center or other devices is critical in real-time and is ensured by QoS and flow control functions, with the switch prioritizing data transmission and improving performance.Power Failure Protection: Redundant Power Input and Relay Output AlarmTo ensure continuous power supply, the switch is designed to connect to two power sources simultaneously and is equipped with an alarm. When the main power fails, the switch automatically uses the backup power and triggers an alarm to notify technicians of the power failure.Withstands Harsh EnvironmentsThis device is built with industrial-grade components, tested in-house, and certified by international market safety agencies such as CE, FCC, and ROHS for reliable operation under harsh conditions. Its strong resistance to extreme temperatures (-10°C to 60°C / 14°F to 140°F) and interference ensures defect-free operation even in harsh environments around various machinery.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX, 100BASE-FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.1az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN tagging), IEEE 802.1X (Port Authentication)Interface: 4 x 10/100/1000BASE-T (RJ45), 2 x 100FX/GbE SFP; DIP Switch for Primary/Redundant Power Voltage Drop Alarm setting; LED Panel: PWR, RPS, ALM, SFP, 1000, LNK/ACTPower: Input Voltage: Primary/Redundant inputs: 20~60V DC; Connection: Terminal Block; Power Consumption: System: 10W; Alarm Relay: One relay output, 1 A @ 24V DCMechanical and Environment: Housing: Metal; Mounting: DIN-Rail; Operating Temperature: -10°C~60°C (14°F~140°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 430 g (0.95 lb); Dimension (WxHxD): 50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in)ModelDescriptionIEN-8424LLite Managed 4 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch*Specifications subject to change without prior notice.Operating temperature: -10°C to 60°C (14°F to 140°F)DIN Rail mountingESD ProtectionIP Code 30QoSRedundant PowerSurge ProtectionLAMUNGAN platformTopology MapDashboardWizardROHS, CE, FC certified
