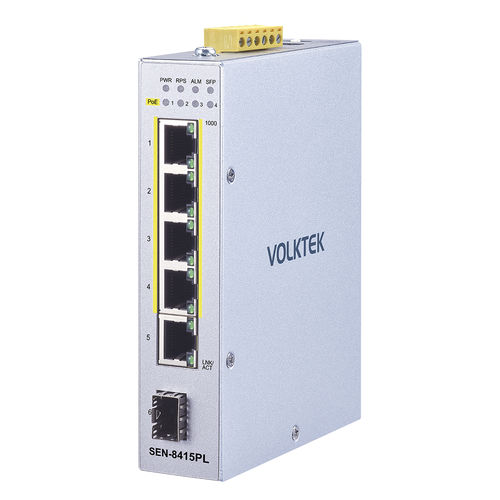

管理型イーサネットスイッチ SEN-8415PL

6 ポートDINレールDIP

Product Features4 x 10/100/1000 PoE+ ports (up to 30W power supply per port)1 x 10/100/1000 RJ45 port and 1 x GbE SFP uplink port (for long-distance high-speed fiber connections)Optimizes network performance and ensures sufficient bandwidth using flow control and QoS3-step installation wizard completed in 3 minutesOperating temperature range: -10°C to 60°C (14°F~140°F), metal housingProduct OverviewThe SEN-8415PL is an industrial switch consisting of 4-port 10/100/1000 PoE+, 1-port 10/100/1000 RJ45, and 1-port FX/GbE multi-rate SFP, equipped with real-time network monitoring functions. It is designed for indoor surveillance and internet access point applications. The SEN-8415PL is a multifunctional PoE+ switch with remote management capabilities, making it especially convenient for surveillance systems and network infrastructure management. Control via web browser and automation features enable efficient and flexible power device management. All ports offer auto-negotiation and support Modbus TCP, allowing easy integration with devices such as HMIs and legacy devices.The SEN-8415PL enables efficient management and quick mastery in just 3 hours, providing ease of use and rapid training. Technicians can quickly understand and apply this device to their work. The wizard function, which enables installation in three steps and three minutes, provides quick and easy setup, making network deployment efficient. Through topology maps and dashboards, network monitoring and management are enhanced, allowing technicians to grasp the network status in real time and perform rapid troubleshooting even when not on-site. The SEN-8415PL improves overall network performance and stability by utilizing rate limiting and QoS (Quality of Service) functions, enhancing user experience.Constructed with industrial-grade components and enclosed in a metal housing, the SEN-8415PL protects the device from tools and hazards. It is designed to withstand vibration, shock, and drops, and to operate in a temperature range of -10°C to 60°C (14°F to 140°F), making it suitable for harsh environments without air conditioning. The switch is equipped with redundant power supplies and alarm relay contacts on the terminal block, which immediately send alerts in the event of a power failure, minimizing downtime and ensuring continuous operation.FunctionsLAMUNGAN - Monitoring and Management Platform: Volktek's embedded monitoring and management platform, Lamungan, provides a user-friendly interface, wizard, topology map, and dashboard, integrating four tools for device deployment and installation, network performance, device monitoring, and network configuration.Wizard - 3-step, 3-minute installation: The wizard supports technicians in setting up network access, security, and login information, enabling quick installation and remote configuration even for inexperienced users.Topology Map - Visual overview of devices and connections: The topology map allows OT and IT users to grasp the entire network structure and connection status at a glance, facilitating problem detection and troubleshooting. The switch uses smart technology to detect third-party devices, their interfaces, and link path status with color codes (green, orange, red). Users can customize icons and background images for the map.Dashboard - Visualization of network performance: The dashboard visualizes the switch's CPU performance and data transfer speed, enabling quick detection and response to device or network issues.Remote management of PoE devices from the control room: Compliant with PoE+ (IEEE 802.3af/at), the SEN-8415PL provides up to 30W per port for all connected power devices, supplying only the necessary power and protecting devices from sudden power spikes. The management interface allows remote device management and control, including PD status checks and PoE scheduling.PD Alive Check: Remotely check the live status of devices and reboot as needed, saving time and costs.PD Scheduling: Schedule power supply to PDs to reduce power consumption and allocate sufficient power to critical applications, saving operational costs.Compatibility and speed adaptability with third-party devices: Multi-rate ports support 10/100/1000 Mbps (copper) and 100/1000 Mbps (fiber), adapting to various devices and environments. Auto-negotiation with legacy devices eliminates the need for additional adapters, reducing costs and simplifying network setup and management.Network performance optimization: Real-time data transmission is crucial for important systems and applications. With QoS and flow control, the SEN-8415PL greatly improves network efficiency and reliability, ensuring critical data is prioritized and delays are minimized.Power failure protection - Redundant power input and relay output alarm: Dual power supplies and alarm systems significantly enhance power supply reliability. Automatic switching to backup power and technician notification via alarm enable quick response and are especially beneficial for critical infrastructure.Resistance to harsh environments: Built with industrial-grade components and rigorously tested, the SEN-8415PL is highly reliable. It meets international safety standards such as CE, FCC, and ROHS, operates in a wide temperature range (-10°C to 60°C), and is resistant to interference, ensuring stable operation even in harsh environments.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX, 100BASE-FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN tagging), IEEE 802.1X (Port Authentication)Interface: 4 x 10/100/1000BASE-T (PoE+ RJ45), 1 x 10/100/1000Base-T RJ45, 1 x 100FX/GbE SFP; DIP Switch for power voltage drop alarm setting (PWR & RPS); LED Panel: PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACTPower: Input Voltage: Primary inputs 48~57V DC, Redundant inputs 48~57V DC, Mini DIN (4 pin) 48~57V DC; Connection: Terminal Block, Mini-DIN; Power Consumption: System 10W, PoE Power Budget 120W; Alarm Relay: One relay output, 1A @ 24V DCMechanical and Environment: Housing: Metal (IP30 Protection); Mounting: DIN-Rail; Operating Temperature: -10°C~60°C (14°F~140°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 290 g (0.64 lb); Dimensions: 31 x 136 x 109.5 mm (1.22 x 5.36 x 4.31 in)Ordering InformationModelDescriptionSEN-8415PLLite Managed 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 & 1 x FX/GbE SFP SwitchCE, FCC, ROHS certifiedTechnical Specifications / Features4 x 10/100/1000 PoE+ ports (up to 30W per port)1 x 10/100/1000 RJ45 port1 x FX/GbE SFP portMetal housing (IP30 protection)DIN-Rail mountingOperating temperature: -10°C~60°CPower input: 48~57V DC (primary/redundant)PoE power budget: 120WDimensions: 31 x 136 x 109.5 mmWeight: 290 gCE, FCC, ROHS certified
